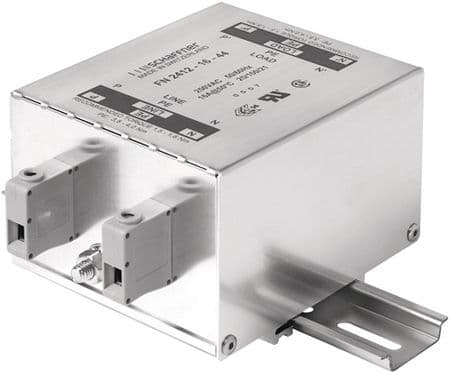

Single-phase power line EMI/RFI filter designed for 250V AC and 250V DC operation, rated for up to 45A. Features a 400Hz operating frequency with a broad range from 0 to 400 Hz. Constructed with terminal block termination and DIN rail mounting for efficient installation. Offers a leakage current of 3.4mA and operates within a temperature range of -25°C to 100°C. This RoHS compliant component is rated IP20 and supports wire/cable gauges up to 6AWG.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schaffner FN2412-45-33 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Current | 45A |
| Current Rating | 45A |
| Depth | 160mm |
| Frequency | 400Hz |
| Height | 87mm |
| Leakage Current | 3.4mA |
| Length | 93mm |
| Max Current Rating | 45A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | DIN Rail |
| Number of Phases | 1 |
| Operating Frequency | 0 to 400 Hz |
| Packaging | Tray |
| Radiation Hardening | No |
| Ratings | IP20 |
| RoHS Compliant | Yes |
| Series | FN 2412 |
| Termination | Terminal Block |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Wire/Cable Gauge | 6AWG |
| RoHS | Compliant |
