Technical Specifications
Schaffner FN3270H-10-44 technical specifications.
General
| Current | 10A |
| Current Rating | 10A |
| Depth | 58mm |
| Height | 58mm |
| Length | 120mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 520V |
| Mount | Chassis Mount, Chassis, Flanges |
| Number of Conductors | 3 |
| Operating Frequency | 0 to 60 Hz |
| Package Quantity | 1 |
| Packaging | Tray |
| Ratings | IP00 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FN 3270 |
| Termination | Terminal Block |
| Voltage Rating (AC) | 520V |
Compliance
| RoHS | Compliant |
Datasheet
Schaffner FN3270H-10-44 Datasheet
Download the complete datasheet for Schaffner FN3270H-10-44 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

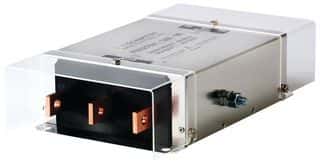

Product Images
