Three-phase EMI/RFI power line filter, 520V AC/DC rated, designed for 60Hz operation. Features a 35A maximum current rating and chassis mount termination with terminal blocks. Operates across a temperature range of -25°C to 100°C, with a leakage current of 29.4mA. This RoHS compliant filter is constructed with a lead-free package and includes CSA, UR, and ENEC approvals. Dimensions are 70mm (length) x 180mm (depth) x 68mm (height), accommodating wire gauges up to 6AWG.
Frequency60Hz
Current35A
Current Rating35A
MountingChassis Mount, Chassis, Flanges
Quick Jump:
Technical Specifications
Schaffner FN3270H-35-33 technical specifications.
General
| Approvals | CSA, UR, ENEC |
| Current | 35A |
| Current Rating | 35A |
| Depth | 180mm |
| Frequency | 60Hz |
| Height | 68mm |
| Lead Free | Lead Free |
| Leakage Current | 29.4mA |
| Length | 70mm |
| Max Current Rating | 35A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 520V |
| Mount | Chassis Mount, Chassis, Flanges |
| Number of Conductors | 3 |
| Operating Frequency | 0 to 60 Hz |
| Package Quantity | 1 |
| Packaging | Tray |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FN 3270 |
| Termination | Terminal Block |
| Voltage Rating (AC) | 520V |
| DC Rated Voltage | 520V |
| Wire/Cable Gauge | 6AWG |
Compliance
| RoHS | Compliant |
Datasheet
Schaffner FN3270H-35-33 Datasheet
Download the complete datasheet for Schaffner FN3270H-35-33 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

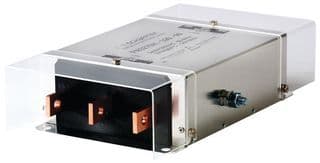

Product Images
