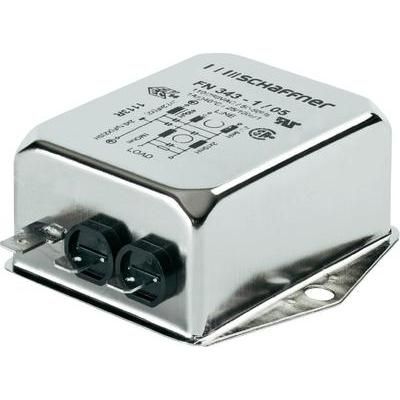

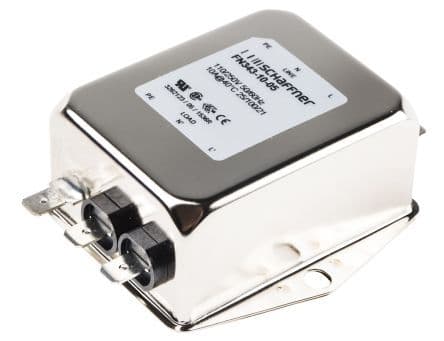

Chassis mount power line filter with 10A current rating and 250V AC voltage rating. Features 270µH inductance, 100nF capacitance, and 1MΩ resistance. Operates from -25°C to 100°C and supports frequencies up to 400Hz. Approvals include UL, CSA, and ENEC. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schaffner FN343-10-05 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Schaffner FN343-10-05 technical specifications.
| Approvals | UL, CSA, ENEC |
| Capacitance | 100nF |
| Current | 10A |
| Current Rating | 10A |
| Height | 30.3mm |
| Inductance | 270uH |
| Leakage Current | 340uA |
| Length | 70mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Chassis |
| Operating Frequency | 0 to 400 Hz |
| Package Quantity | 16 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resistance | 1MR |
| RoHS Compliant | Yes |
| Series | FN 343 |
| Termination | Faston |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 69mm |
| RoHS | Compliant |
