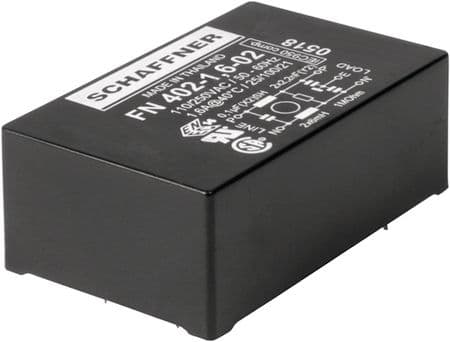

Single-phase EMI/RFI power line filter designed for AC applications, operating at 250V and 50/60Hz. Features a 4A current rating, 1mH inductance, and 100nF capacitance. This through-hole mounted filter offers a broad operating frequency range from 0 to 400 Hz, with a maximum operating temperature of 100°C and a minimum of -25°C. It is RoHS compliant and UL/CSA approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schaffner FN402-4-02 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Schaffner FN402-4-02 technical specifications.
| Approvals | UL, CSA |
| Capacitance | 100nF |
| Current | 4A |
| Current Rating | 4A |
| Depth | 28mm |
| Filter Type | STANDARD |
| Frequency | 400Hz |
| Height | 16.5mm |
| Inductance | 1mH |
| Lead Free | Lead Free |
| Lead Length | 4mm |
| Leakage Current | 373uA |
| Length | 45mm |
| Max Current Rating | 4A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole, PCB |
| Operating Frequency | 0 to 400 Hz |
| Package Quantity | 20 |
| Packaging | Tray |
| Primary Type | AC |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FN 402 |
| Termination | PC Pins |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 45mm |
| RoHS | Compliant |
