AC line filter for EMI/RFI suppression, rated for 250V AC and 3A maximum current. Features through-hole PCB mounting with PC pin termination. Includes 2.5mH inductance and 100nF capacitance, with a leakage current of 190uA. Operates from 0 to 400 Hz, with a temperature range of -25°C to 100°C. Approvals include UL, CSA, and ENEC.
Frequency60Hz
Current3A
Capacitance100nF
Resistance1MR
Quick Jump:
Technical Specifications
Schaffner FN406-3-02 technical specifications.
General
| Approvals | UL, CSA, ENEC |
| Capacitance | 100nF |
| Current | 3A |
| Current Rating | 3A |
| Depth | 15mm |
| Frequency | 60Hz |
| Height | 29.5mm |
| Inductance | 2.5mH |
| Lead Length | 7mm |
| Leakage Current | 190uA |
| Length | 45mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole, PCB |
| Operating Frequency | 0 to 400 Hz |
| Package Quantity | 50 |
| Packaging | Tray |
| Primary Type | AC |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 1MR |
| RoHS Compliant | Yes |
| Series | FN 406 |
| Termination | PC Pins |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 15mm |
Compliance
| RoHS | Compliant |
Datasheet
Schaffner FN406-3-02 Datasheet
Download the complete datasheet for Schaffner FN406-3-02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

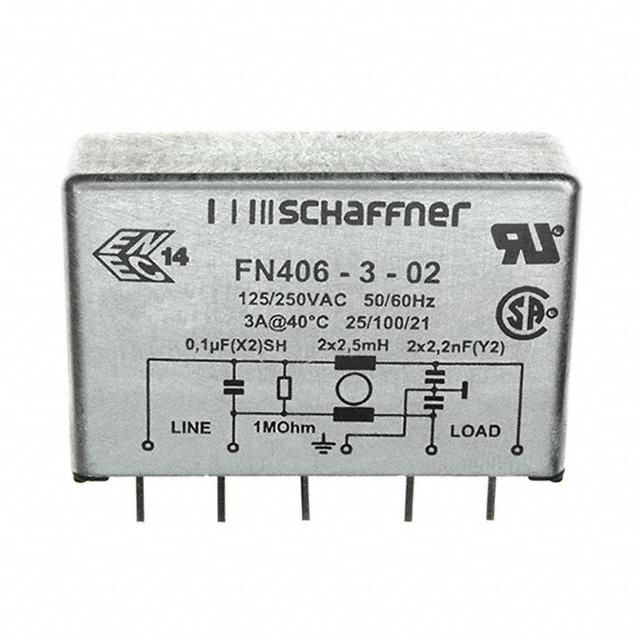

Product Images
