Technical Specifications
Schaffner IT245 technical specifications.
General
DC Resistance (DCR)
1.48R
Depth
17.6mm
Frequency
40kHz
Height
11.3mm
Inductance
8mH
Isolation Voltage
4kV
Lead/Base Style
PC Pin
Length
16.7mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
200
Packaging
Tray
Primary Inductance
8mH
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
IT
Transformer Type
PULSE TRANSFORMER
Turns Ratio
1:1
Weight
0.2oz
Width
16.7mm
Compliance
RoHS
Compliant
Datasheet
Schaffner IT245 Datasheet
Download the complete datasheet for Schaffner IT245 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

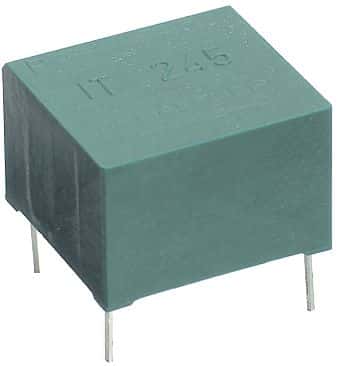

Product Images
