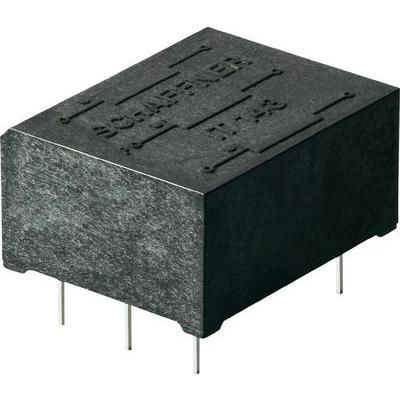

1:1.1 turns ratio pulse transformer with 1.1mH primary inductance, designed for 40kHz operation. Features 3.2kV isolation voltage, 550mR DC resistance, and 6pF capacitance. Through-hole PCB mount with PC pin leads, operating temperature range of -25°C to 70°C. Dimensions: 16.7mm L x 16.7mm W x 11.3mm H. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schaffner IT253 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Schaffner IT253 technical specifications.
| Capacitance | 6pF |
| DC Resistance (DCR) | 550mR |
| Depth | 17.6mm |
| Frequency | 40kHz |
| Height | 11.3mm |
| Inductance | 1.1mH |
| Isolation Voltage | 3.2kV |
| Lead/Base Style | PC Pin |
| Length | 16.7mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Operating Supply Voltage | 500V |
| Package Quantity | 200 |
| Packaging | Tray |
| Primary Inductance | 1.1mH |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | IT |
| Transformer Type | PULSE TRANSFORMER |
| Turns Ratio | 1:1.1 |
| Weight | 0.2oz |
| Width | 16.7mm |
| RoHS | Compliant |
