Solid State Relay (SSR) with DC input and AC/DC output, featuring an 8A load current rating and a maximum output voltage of 150VDC. This single-pole, single-throw (SPST) relay operates with a DC supply voltage range of 3V to 150V and mounts via DIN rail. It offers a turn-on delay time of 5ms and is terminated with screws. Approvals include CE and cULus, with an operating temperature range of -30°C to 80°C.
Current Rating8A
MountingDIN Rail
Quick Jump:
Technical Specifications
Schneider 861SSR208-DD technical specifications.
General
Approvals
CE, cULus
Current Rating
8A
Depth
65mm
Height
90mm
Input Type
DC
Lead Free
Lead Free
Length
17.6mm
Load Current
8A
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Max Output Current
8A
Max Output Voltage
150V
Max Supply Voltage (DC)
150V
Min Supply Voltage (DC)
3V
Max Supply Voltage
150V
Min Supply Voltage
3V
Mount
DIN Rail
Number of Poles
1
Operating Supply Voltage
150V
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Termination
Screw
Throw Configuration
SPST
Turn-On Delay Time
5ms
DC Rated Voltage
150V
Compliance
RoHS
Not Compliant
Datasheet
Schneider 861SSR208-DD Datasheet
Download the complete datasheet for Schneider 861SSR208-DD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

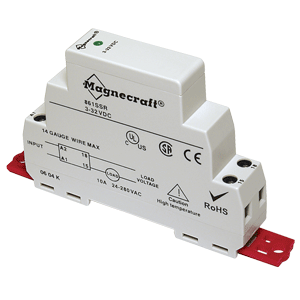

Product Images
