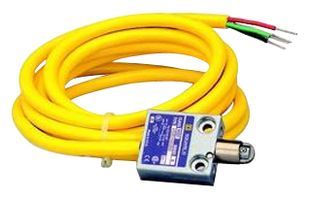

This Schneider SPDT snap action switch features a maximum operating temperature of 105°C and a minimum operating temperature of -40°C. It has a mechanical life of 10 million cycles and an electrical life of 100,000 cycles. The switch is rated for 28V DC and has a maximum voltage rating of 240V AC. It is RoHS compliant and has IP67 ratings for protection against solid particles and water.
Quick Jump:
Technical Specifications
Schneider 9007MS02S0200 technical specifications.
General
| Actuator Type | PLUNGER |
| Approvals | UL, CSA, CE |
| Contact Type | Snap Action |
| Depth | 15.75mm |
| Electrical Life | 100000Cycles |
| Height | 44.45mm |
| Length | 39.62mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 240V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 10000000Cycles |
| Operating Force | 22.24N |
| Orientation | Straight |
| Package Quantity | 1 |
| Ratings | IP67 |
| RoHS Compliant | Yes |
| Termination | Cable |
| Throw Configuration | SPDT |
Compliance
| RoHS | Compliant |
Datasheet
Schneider 9007MS02S0200 Datasheet
Download the complete datasheet for Schneider 9007MS02S0200 to view detailed technical specifications.
No datasheet is available for this part.
