The ATS01N125FT is a soft starter with a control voltage of 240V and a current rating of 25A. It has a maximum operating temperature of 40°C and a minimum operating temperature of -10°C. The device is rated for use in environments with an IP20 rating and is compliant with Reach SVHC regulations. It measures 124mm in length and 131mm in overall depth, with a voltage rating of 480V.
Voltage Rating480V
Current Rating25A
Quick Jump:
Technical Specifications
Schneider ATS01N125FT technical specifications.
General
| Control Voltage | 240V |
| Current Rating | 25A |
| Length | 124mm |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 480V |
| Min Supply Voltage | 110V |
| Overall Depth | 131mm |
| Ratings | IP20 |
| Reach SVHC Compliant | Unknown |
| Series | ATS01 |
| Voltage Rating | 480V |
Compliance
| RoHS | Compliant |
Datasheet
Schneider ATS01N125FT Datasheet
Download the complete datasheet for Schneider ATS01N125FT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

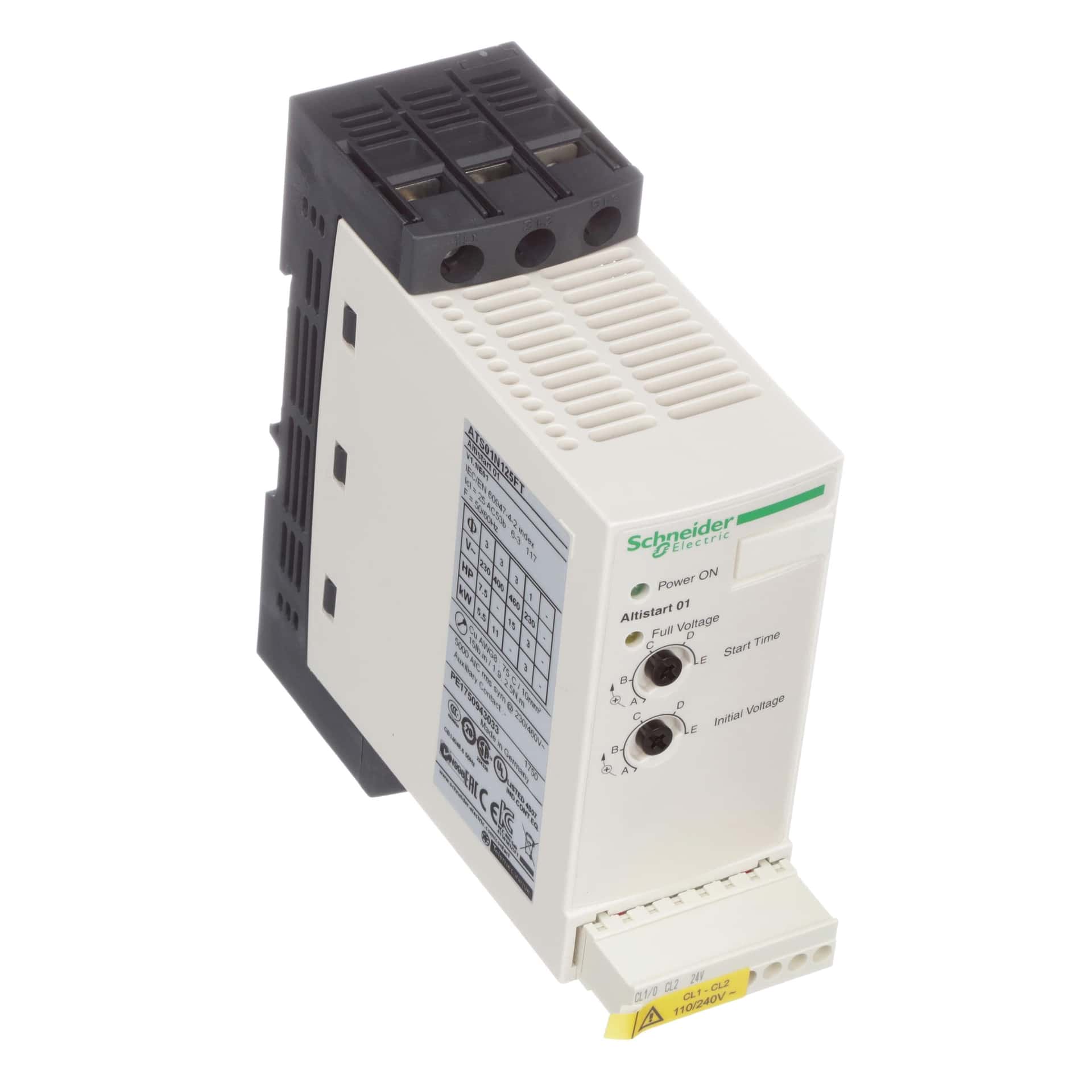

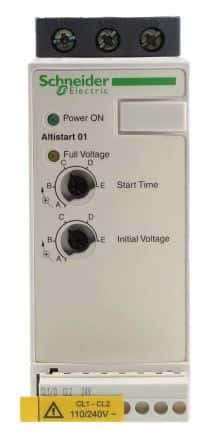

Product Images
