The ATS01N232QN is a motor controller from Schneider with a control voltage of 240V and a current rating of 32A. It has a maximum operating temperature of 40°C and a minimum operating temperature of -10°C. The device is rated for a maximum supply voltage of 415V and a minimum supply voltage of 380V. It has a depth of 175mm and is packaged individually. The ATS01N232QN meets IP20 ratings and is compliant with Reach SVHC regulations, although the status is unknown. It is part of the ATS01 series.
Voltage Rating415V
Current Rating32A
Quick Jump:
Technical Specifications
Schneider ATS01N232QN technical specifications.
General
| Control Voltage | 240V |
| Current Rating | 32A |
| Length | 130.7mm |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 415V |
| Min Supply Voltage | 380V |
| Overall Depth | 175mm |
| Package Quantity | 1 |
| Ratings | IP20 |
| Reach SVHC Compliant | Unknown |
| Series | ATS01 |
| Voltage Rating | 415V |
Compliance
| RoHS | Compliant |
Datasheet
Schneider ATS01N232QN Datasheet
Download the complete datasheet for Schneider ATS01N232QN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

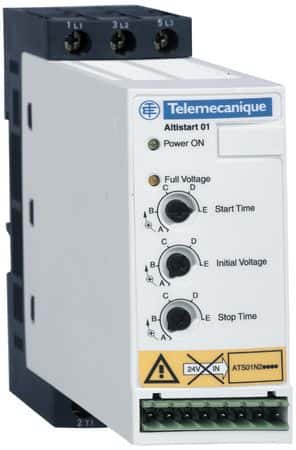

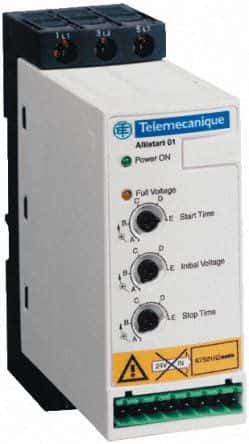

Product Images
