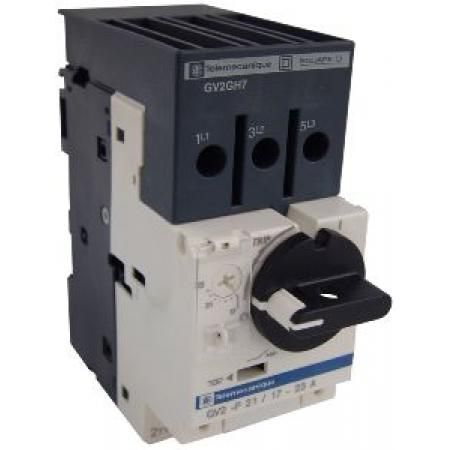

The GV2P21 is a 3-pole rotary circuit breaker with a current rating of 23A and a voltage rating of 690V. It is designed for use in a variety of applications and has a maximum operating temperature of 60°C and a minimum operating temperature of -20°C. The breaker has a depth of 97mm, a height of 89mm, and a length of 97mm, and weighs 350g. It is part of the GV2P series and has a screw termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schneider GV2P21 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Rotary |
| Current Rating | 23A |
| Depth | 97mm |
| Height | 89mm |
| Length | 97mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Number of Poles | 3 |
| Reach SVHC Compliant | Unknown |
| Series | GV2P |
| Termination | Screw |
| Voltage Rating | 690V |
| Voltage Rating (AC) | 690V |
| Weight | 350g |
| Width | 45mm |
| RoHS | Compliant |
