Technical Specifications
Schneider LC1D09BL technical specifications.
General
| Approvals | UL, CSA, IEC, EN |
| Coil Power | 5.4W |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 9A |
| Current Rating | 9A |
| Depth | 93mm |
| Height | 77mm |
| Length | 77mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -5°C |
| Mount | DIN Rail |
| Number of Poles | 3 |
| Operating Supply Voltage | 24V |
| Reach SVHC Compliant | Unknown |
| Series | LC1 |
| Termination | Screw |
| Throw Configuration | 3P |
| Type | General Purpose |
| Voltage Rating (AC) | 600V |
| Width | 45mm |
Compliance
| RoHS | Compliant |
Datasheet
Schneider LC1D09BL Datasheet
Download the complete datasheet for Schneider LC1D09BL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

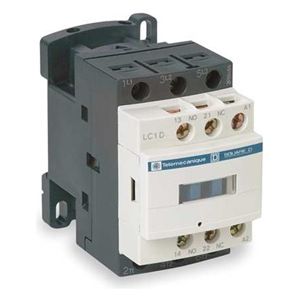

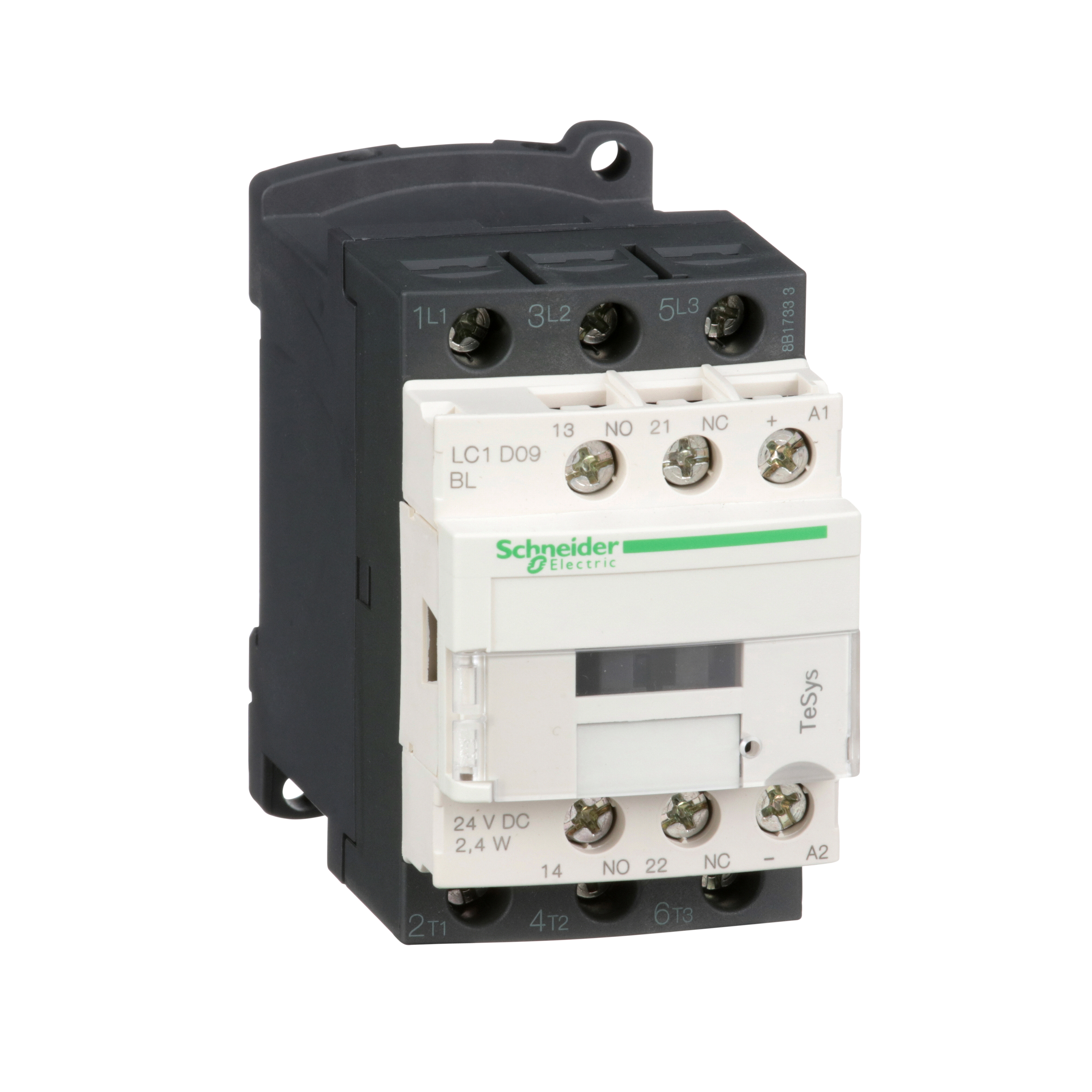

Product Images
