Technical Specifications
Schneider LC1D115G7 technical specifications.
General
| Approvals | UL, CSA, IEC, CCC, EN |
| Package/Case | 120 |
| Coil Voltage (AC) | 120V |
| Contact Current Rating | 115A |
| Depth | 136mm |
| Length | 158mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -5°C |
| Mount | DIN Rail |
| Number of Poles | 3 |
| Operating Supply Voltage | 1kV |
| Reach SVHC Compliant | Unknown |
| Series | LC1 |
| Termination | Screw |
| Throw Configuration | 3PST |
| Type | General Purpose |
| Voltage Rating (AC) | 1kV |
| DC Rated Voltage | 300V |
| Width | 120mm |
Compliance
| RoHS | Compliant |
Datasheet
Schneider LC1D115G7 Datasheet
Download the complete datasheet for Schneider LC1D115G7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

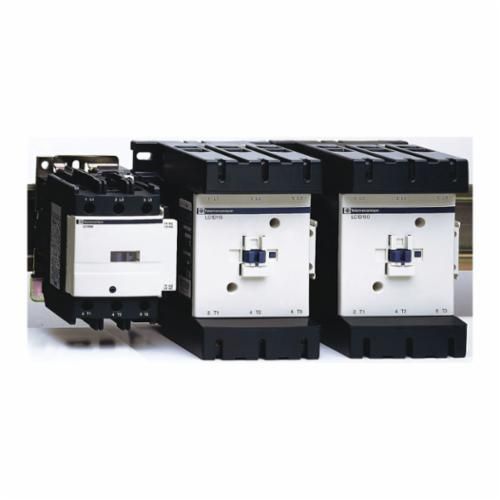

Product Images
