Technical Specifications
Schneider LC1D12V7 technical specifications.
General
Coil Voltage (AC)
400V
Contact Current Rating
12A
Depth
84mm
Length
77mm
Max Operating Temperature
60°C
Min Operating Temperature
-5°C
Number of Poles
3
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
LC1
Termination
Screw
Throw Configuration
3P
Width
45mm
Compliance
RoHS
Compliant
Datasheet
Schneider LC1D12V7 Datasheet
Download the complete datasheet for Schneider LC1D12V7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

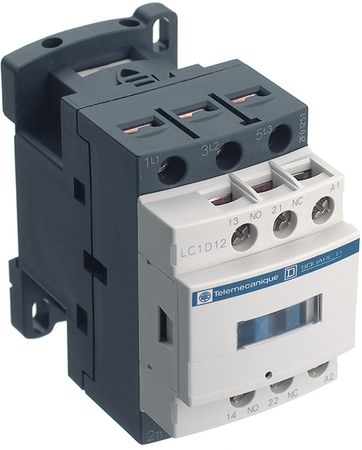

Product Images
