This general-purpose relay is designed for high-current applications, with a contact current rating of 18A and a voltage rating of 690V AC. It can operate within a temperature range of -5°C to 60°C. The relay is mounted on a DIN rail and has a screw termination. It is approved to various international standards, including UL, CSA, IEC, and EN.
Current Rating18A
MountingDIN Rail
Quick Jump:
Technical Specifications
Schneider LC1D18BL technical specifications.
General
| Approvals | UL, CSA, IEC, EN |
| Coil Power | 5.4W |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 18A |
| Current Rating | 18A |
| Depth | 93mm |
| Length | 77mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -5°C |
| Mount | DIN Rail |
| Number of Poles | 3 |
| Operating Supply Voltage | 690V |
| Reach SVHC Compliant | Unknown |
| Series | LC1 |
| Termination | Screw |
| Throw Configuration | 3P |
| Type | General Purpose |
| Voltage Rating (AC) | 690V |
| DC Rated Voltage | 300V |
| Width | 45mm |
Compliance
| RoHS | Compliant |
Datasheet
Schneider LC1D18BL Datasheet
Download the complete datasheet for Schneider LC1D18BL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

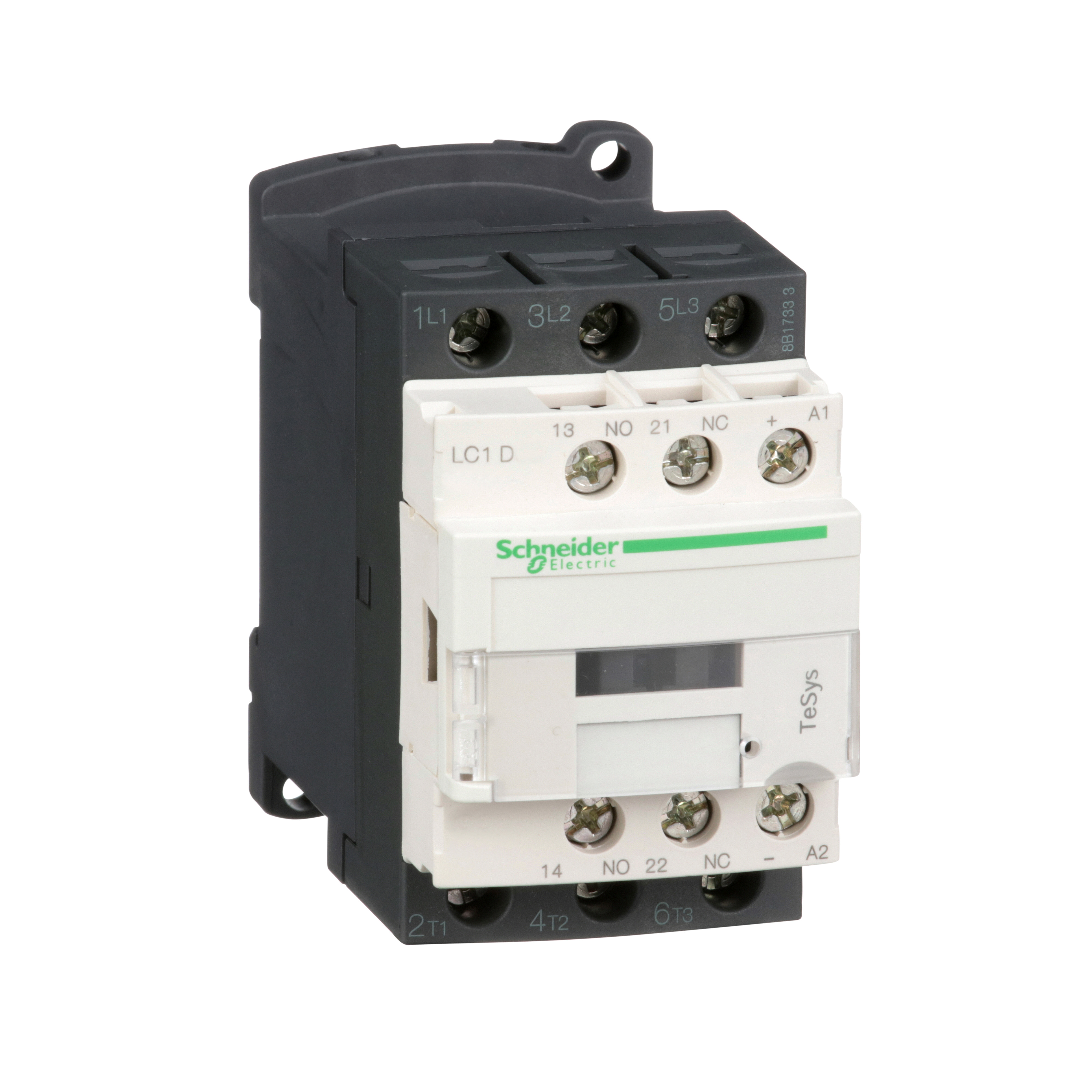

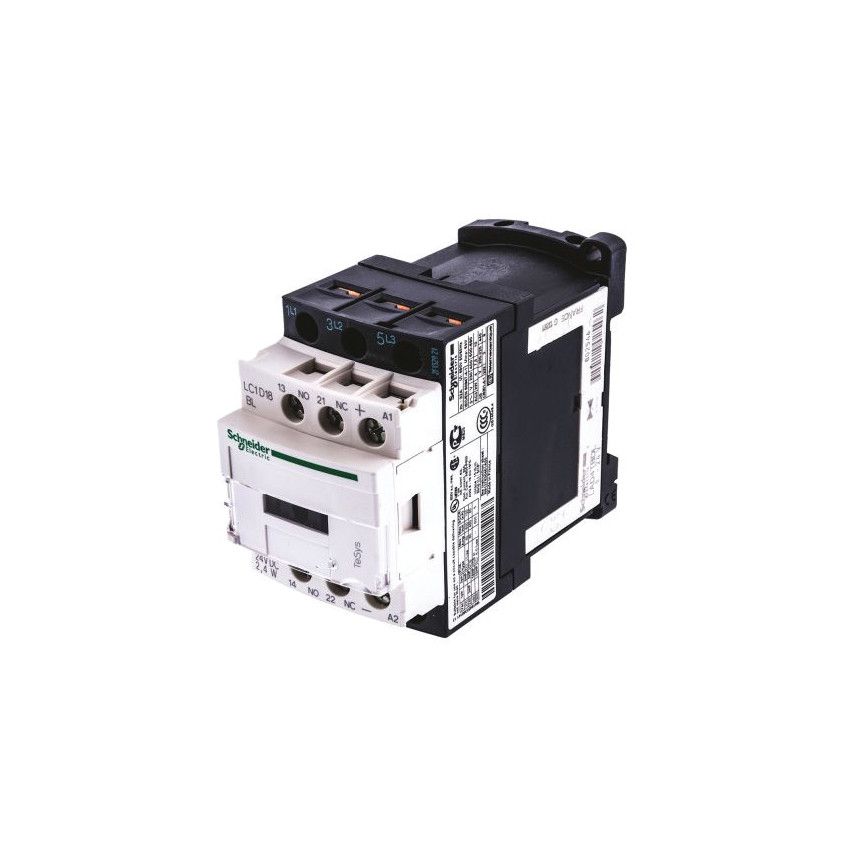

Product Images
