The LC1D32B7 is a general purpose relay with a contact current rating of 32A and a voltage rating of 600V AC. It has a 3P throw configuration and is mounted on a DIN rail. The relay operates within a temperature range of -5°C to 60°C and is compliant with UL, CSA, IEC, and EN approvals. It is also RoHS compliant and has a width of 45mm and a depth of 90mm.
Current Rating32A
MountingDIN Rail
Quick Jump:
Technical Specifications
Schneider LC1D32B7 technical specifications.
General
| Approvals | UL, CSA, IEC, EN |
| Contact Current Rating | 32A |
| Current Rating | 32A |
| Depth | 90mm |
| Length | 85mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -5°C |
| Mount | DIN Rail |
| Number of Poles | 3 |
| Operating Supply Voltage | 24V |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | LC1 |
| Termination | Screw |
| Throw Configuration | 3P |
| Type | General Purpose |
| Voltage Rating (AC) | 600V |
| Width | 45mm |
Compliance
| RoHS | Compliant |
Datasheet
Schneider LC1D32B7 Datasheet
Download the complete datasheet for Schneider LC1D32B7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

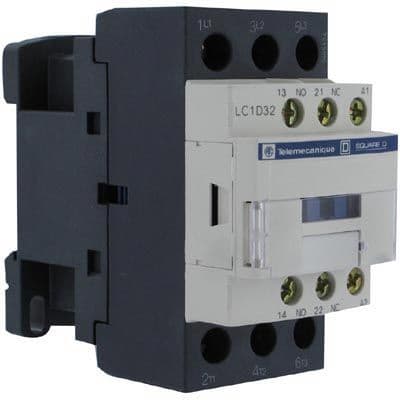

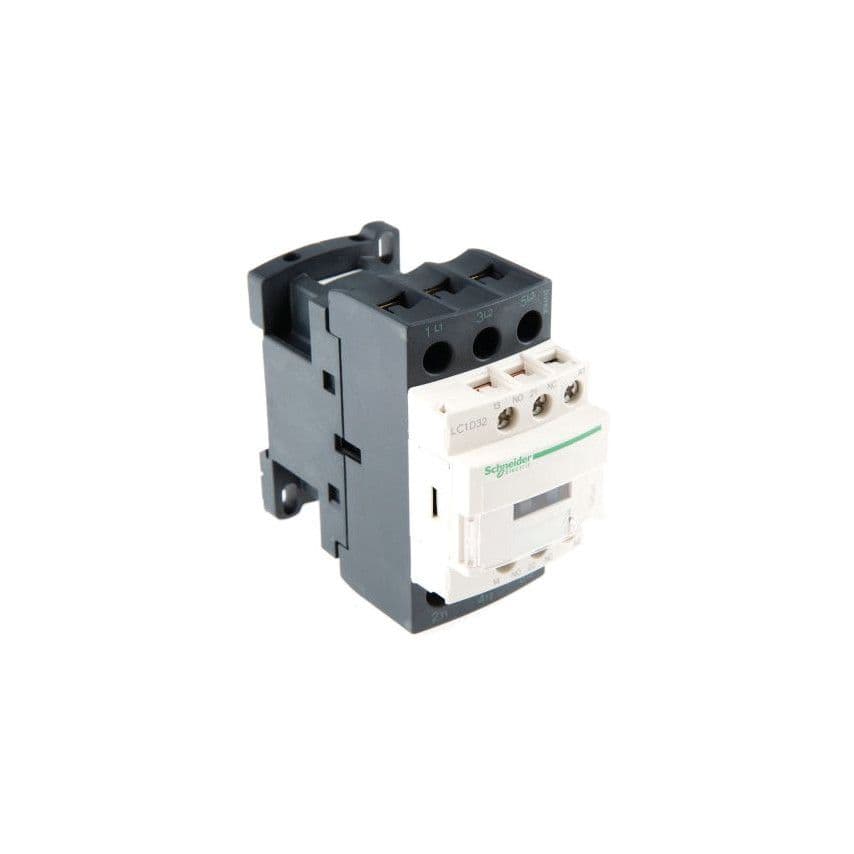

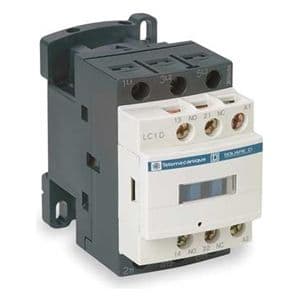

Product Images
