Technical Specifications
Schneider LC1D95M7 technical specifications.
General
| Package/Case | 125 |
| Coil Voltage (AC) | 220V |
| Contact Current Rating | 95A |
| Depth | 125mm |
| Length | 127mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -5°C |
| Mount | Screw, DIN Rail |
| Number of Poles | 3 |
| Reach SVHC Compliant | Yes |
| Series | TeSys D |
| Termination | Screw |
| Throw Configuration | 3PST |
| Width | 85mm |
Compliance
| RoHS | Compliant |
Datasheet
Schneider LC1D95M7 Datasheet
Download the complete datasheet for Schneider LC1D95M7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

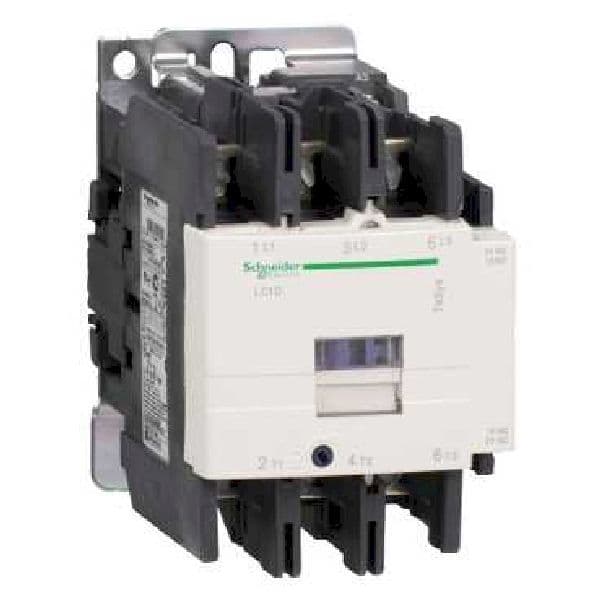

Product Images
