Technical Specifications
Schneider LC1DT20F7 technical specifications.
General
| Coil Voltage (AC) | 110V |
| Contact Current Rating | 20A |
| Depth | 90mm |
| Length | 85mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -5°C |
| Mount | DIN Rail |
| Number of Poles | 4 |
| Operating Supply Voltage | 110V |
| Reach SVHC Compliant | Unknown |
| Relay Type | Contactor |
| RoHS Compliant | Yes |
| Series | LC1 |
| Termination | Screw |
| Throw Configuration | 4P |
| Width | 45mm |
Compliance
| RoHS | Compliant |
Datasheet
Schneider LC1DT20F7 Datasheet
Download the complete datasheet for Schneider LC1DT20F7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

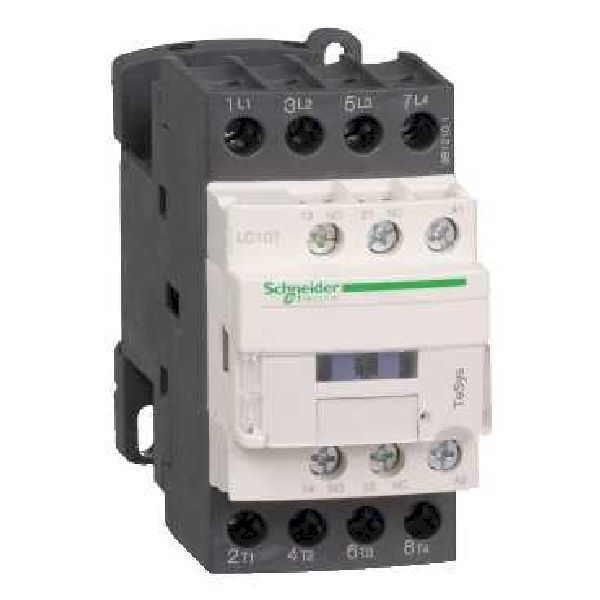

Product Images
