The LR2K0305 is a 1-form-A relay with a contact current rating of 800mA and a control voltage of 690V. It is designed for DIN rail mounting and has a maximum operating temperature of 55°C and a minimum operating temperature of -20°C. The relay has a package size of 100 and a termination type of screw. It is compliant with RoHS regulations and has a throw configuration of 3P.
Package100
MountingDIN Rail
Quick Jump:
Technical Specifications
Schneider LR2K0305 technical specifications.
General
| Package/Case | 100 |
| Contact Current Rating | 800mA |
| Control Voltage | 690V |
| Depth | 65mm |
| Height | 116mm |
| Length | 116mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -20°C |
| Mount | DIN Rail |
| Number of Circuits | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | LR2K |
| Termination | Screw |
| Throw Configuration | 3P |
| Width | 45mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Schneider LR2K0305 Datasheet
Download the complete datasheet for Schneider LR2K0305 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

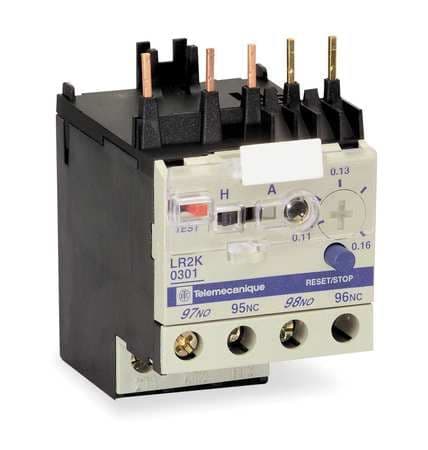

Product Images
