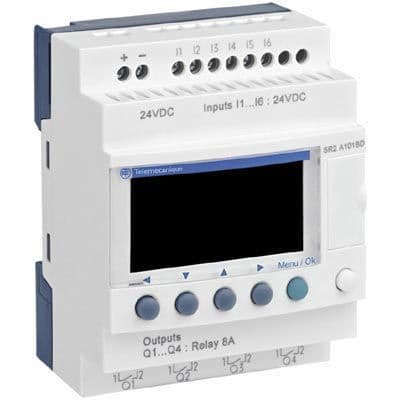

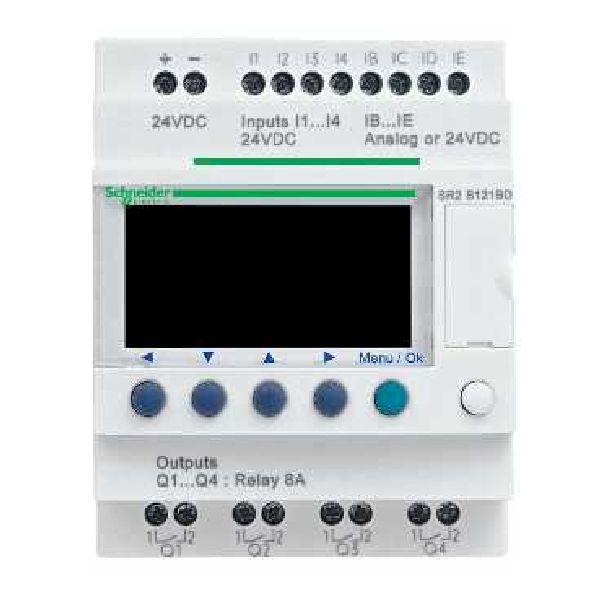

Compact 12 I/O relay with 8 inputs and 4 outputs, featuring 4PDT relay output type and 8A output current rating. Operates with a 24Vdc coil voltage and 12kR coil resistance, utilizing non-latching coil technology. Offers Ethernet network connectivity and DIN rail mounting. Designed for operation between -20°C and 55°C, with screw termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schneider SR2PACKBD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Resistance | 12kR |
| Coil Type | Non-Latching |
| Current Rating | 8A |
| Depth | 59mm |
| Length | 90mm |
| Manufacturer Series | Zelio Logic 2 |
| Max Input Voltage | 24V |
| Min Input Voltage | 24V |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 24V |
| Mount | DIN Rail |
| Network Type | ETHERNET |
| Number of I/Os | 12 |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| Output Current | 8A |
| Output Type | RELAY |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SR2 |
| Termination | Screw |
| Throw Configuration | 4PDT |
| Width | 71.2mm |
| RoHS | Compliant |
