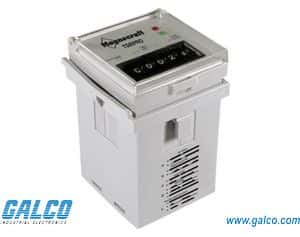

Programmable and fixed time delay relay featuring a DPDT contact configuration with a 12A contact current rating and silver contact material. Operates on 240V AC coil voltage with a 25ms operate time. Supports panel, plug-in, and DIN rail mounting. Rated for 240V AC and 30V DC maximum voltage. Approvals include UL and CE.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schneider TDRPRO-5100 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CE |
| Coil Voltage (AC) | 240V |
| Contact Current Rating | 12A |
| Contact Material | Silver |
| Depth | 80mm |
| Height | 48.3mm |
| Lead Free | Lead Free |
| Length | 48mm |
| Max Current Rating | 12A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 240V |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel, Plug-In, DIN Rail |
| Nominal Input Voltage | 240V |
| Number of Contacts | 2 |
| Operate Time | 25ms |
| Operating Supply Voltage | 240V |
| Package Quantity | 10 |
| Reach SVHC Compliant | Unknown |
| Termination | Circular |
| Throw Configuration | DPDT |
| Weight | 133g |
| Width | 48mm |
| RoHS | Compliant |
