The Schneider XB2 Series 600V 10A SPST switch features a screw termination and a voltage rating of 600V DC. It operates within a temperature range of -25 to 70°C. This switch is compliant with RoHS regulations and is available in a package quantity of 10. The switch has a single pole and a throw configuration of SPST.
Package600
Voltage Rating600V
Current Rating10A
Quick Jump:
Technical Specifications
Schneider ZB2BE102 technical specifications.
General
| Package/Case | 600 |
| Current Rating | 10A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Number of Poles | 1 |
| Package Quantity | 10 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | XB2 |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Schneider ZB2BE102 Datasheet
Download the complete datasheet for Schneider ZB2BE102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

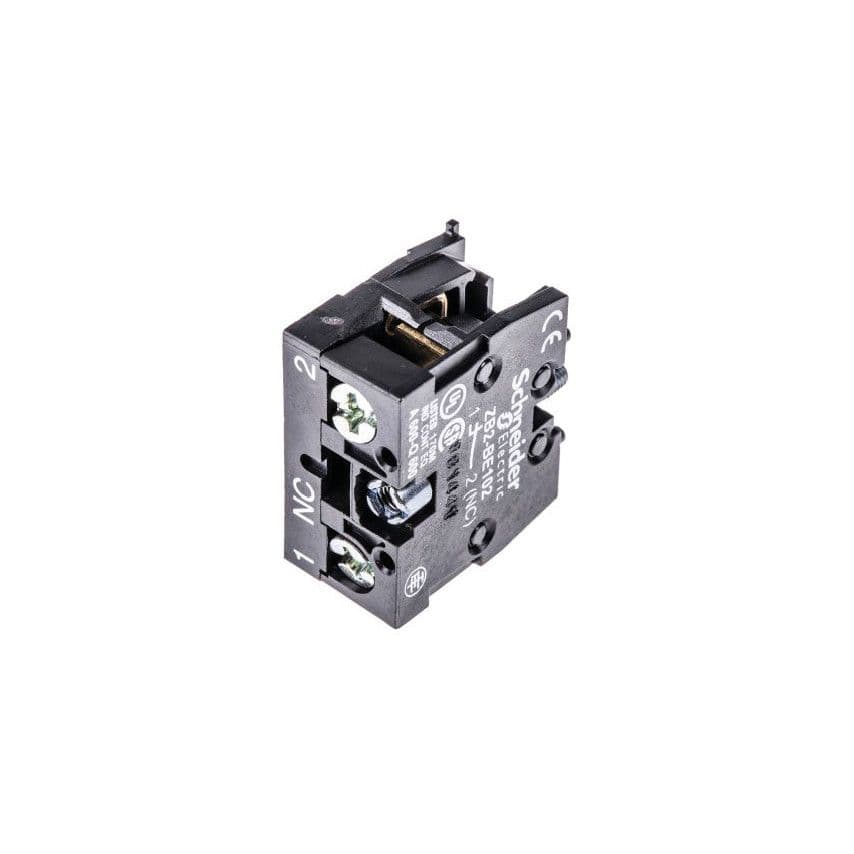

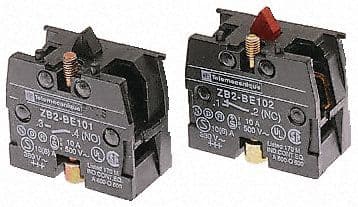

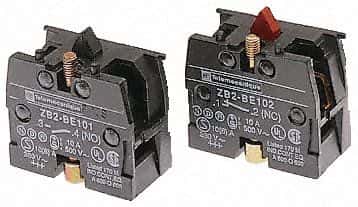

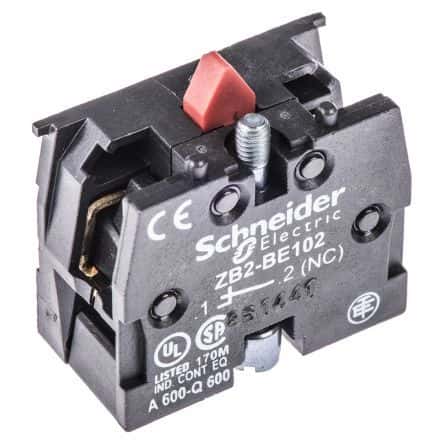

Product Images
