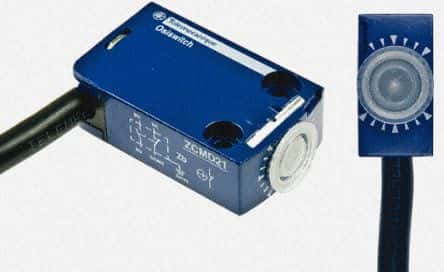

The Schneider ZCMD21L2 is a 5A snap action panel mount switch with a metal package and IP67 ratings. It has a maximum operating temperature of 70°C and a minimum operating temperature of -25°C. The switch has a depth of 16mm, a length of 50mm, and a width of 30mm. It is suitable for use in applications where a high current rating is required.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schneider ZCMD21L2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Schneider ZCMD21L2 technical specifications.
| Actuator Type | PLUNGER |
| Package/Case | Metal |
| Contact Type | Snap Action |
| Current Rating | 5A |
| Depth | 16mm |
| Length | 50mm |
| Material | Metal |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Termination | Cable |
| Throw Configuration | DP |
| Width | 30mm |
| RoHS | Compliant |
Download the complete datasheet for Schneider ZCMD21L2 to view detailed technical specifications.
