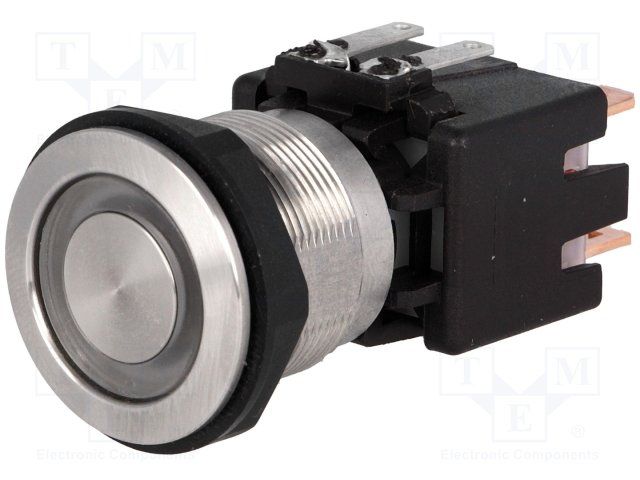

Illuminated pushbutton switch featuring a DPST, latched function with a red LED illumination. Offers a 12A current rating at 250VAC or 30VDC, with silver contacts and a mechanical life of 100,000 cycles. Designed for panel mounting with a threaded body and quick connect terminals, this switch boasts IP64, water-resistant, and dust-tight ratings. Constructed from stainless steel with a round red button actuator, it operates within a temperature range of -20°C to 85°C.
PackageMetal
Current Rating12A
MountingPanel, Front
Quick Jump:
Technical Specifications
Schurter 1241.6824.1121000 technical specifications.
General
Actuator Type
Round, Button
Package/Case
Metal
Color
Red
Contact Current Rating
12A
Contact Material
Silver
Current Rating
12A
Electrical Life
50000Cycles
Illumination Color
Red
Illumination Type
LED, Illuminated
Lead Free
Lead Free
Material
Stainless Steel
Max Operating Temperature
85°C
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Panel, Front
Number of Positions
2
Operating Force
10N
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Ratings
IP64, Water Resistant, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSM LA
Switch Function
Off-On
Termination
Quick Connect
Throw Configuration
DPST
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
