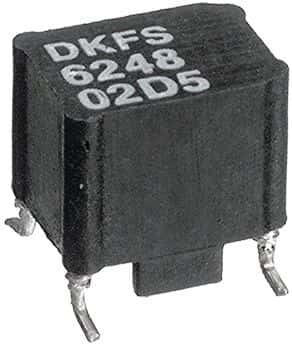

Dual common mode choke for power and signal lines, featuring 500µH inductance per line and a 2A current rating. This surface mount component offers a low DC resistance of 50mΩ and operates within a temperature range of -25°C to 100°C. With a 250V AC voltage rating and RoHS compliance, it is suitable for demanding applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schurter DKFS-6248-02D5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UR |
| Package/Case | SMD/SMT |
| Current | 2A |
| Current Rating | 2A |
| DC Resistance (DCR) | 50mR |
| Depth | 10.7mm |
| Height | 0.433inch |
| Inductance | 500uH |
| Length | 0.421inch |
| Max Current Rating | 2A |
| Max DC Current | 2A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 176 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 4.5MHz |
| Series | DKFS |
| Series Resistance | 50mR |
| Termination | SMD/SMT |
| Tolerance | 50% |
| Voltage Rating (AC) | 250V |
| Weight | 0.070548oz |
| Width | 0.323inch |
| RoHS | Compliant |
