Dual common mode choke with 1.1mH inductance and 20A current rating. Features 6mR DC resistance, 540V AC voltage rating, and 760V DC rated voltage. Designed for chassis mounting with wire termination, this shielded component operates from -25°C to 100°C. Dimensions are 48mm length, 48mm width, and 30.8mm height.
PackageNonstandard
Current20A
MountingChassis Mount, Wire
Inductance1.1mH
Quick Jump:
Technical Specifications
Schurter DKIP-0229-2001 technical specifications.
General
Package/Case
Nonstandard
Current
20A
DC Resistance (DCR)
6mR
Height
30.8mm
Inductance
1.1mH
Lead/Base Style
Lead Wire
Length
48mm
Max Current Rating
20A
Max DC Current
20A
Max Operating Temperature
100°C
Min Operating Temperature
-25°C
Mount
Chassis Mount, Wire
Number of Lines
2
Package Quantity
6
Packaging
Bag
RoHS Compliant
Yes
Self Resonant Frequency
2.5MHz
Series
DKIP-1
Shielding
Shielded
Termination
Wire
Tolerance
50%
Voltage Rating (AC)
540V
DC Rated Voltage
760V
Weight
5.78493oz
Width
48mm
Compliance
RoHS
Compliant
Datasheet
Schurter DKIP-0229-2001 Datasheet
Download the complete datasheet for Schurter DKIP-0229-2001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

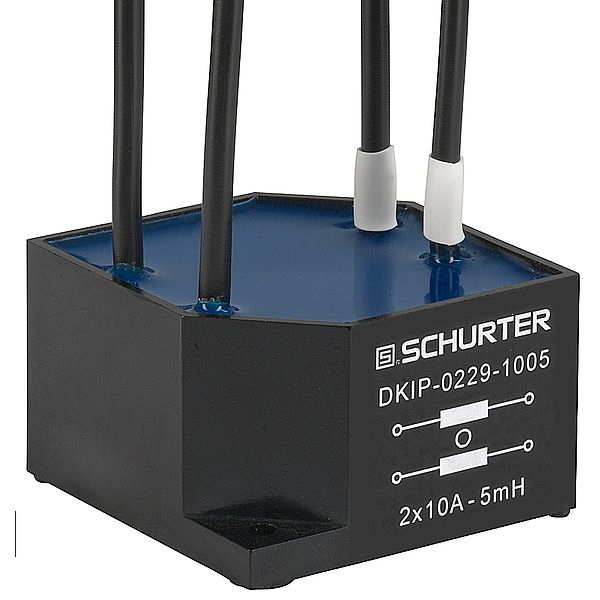

Product Images
