Technical Specifications
Schurter DSH-31-0004 technical specifications.
General
| Package/Case | Radial |
| DC Resistance (DCR) | 40mR |
| Depth | 18.5mm |
| Height | 33mm |
| Inductance | 100uH |
| Lead/Base Style | Pin |
| Length | 31.5mm |
| Max DC Current | 4A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 70 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 30MHz |
| Series | DSH |
| Tolerance | 15% |
| Weight | 1.058219oz |
Compliance
| RoHS | Compliant |
Datasheet
Schurter DSH-31-0004 Datasheet
Download the complete datasheet for Schurter DSH-31-0004 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

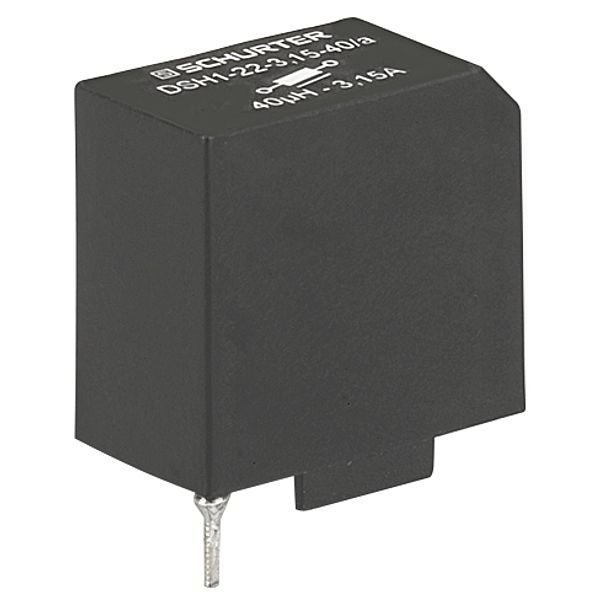

Product Images
