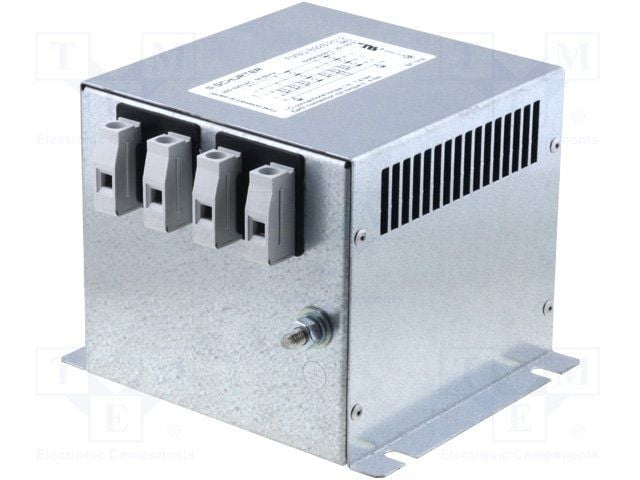

Three-phase EMI/RFI power line filter designed for 520V AC operation at 50/60Hz. Features a 25A current rating, chassis mount with screw terminals, and a robust construction with a 100°C maximum operating temperature. This filter offers effective noise suppression up to 300MHz and is RoHS compliant. Includes UL, cULus, and ENEC approvals for broad application use.
Frequency300MHz
Current25A
Current Rating25A
MountingChassis Mount, Screw, Flanges
Quick Jump:
Technical Specifications
Schurter FMBD-B92B-2512 technical specifications.
General
| Approvals | UL, cULus, ENEC |
| Current | 25A |
| Current Rating | 25A |
| Depth | 155mm |
| Frequency | 300MHz |
| Height | 115mm |
| Inductance | -1.6mH |
| Length | 165mm |
| Max Current Rating | 25A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 520V |
| Mount | Chassis Mount, Screw, Flanges |
| Number of Conductors | 4 |
| Operating Frequency | 50|60 Hz |
| Package Quantity | 2 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FMBD NEO |
| Termination | Terminal Block |
| Voltage Rating (AC) | 520V |
| Weight | 4lb |
Compliance
| RoHS | Compliant |
