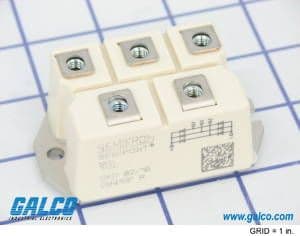

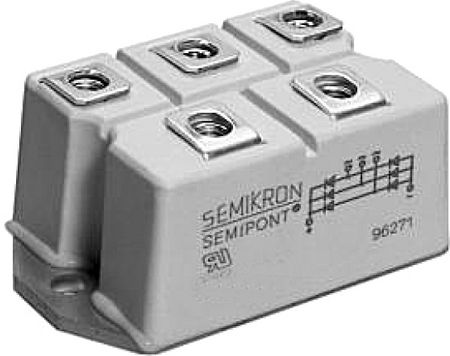

The SKD82/16 is a bridge rectifier with a maximum operating temperature of 150°C and a maximum repetitive reverse voltage of 1.6kV. It has a current rating of 80A and a maximum forward surge current of 750A. The device is mounted on a chassis with screws and has a module package type. It is RoHS compliant but not radiation hardened or SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Semikron SKD82/16 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Current Rating | 80A |
| Forward Current | 80A |
| Height | 30mm |
| Length | 72mm |
| Max Forward Surge Current (Ifsm) | 750A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.6kV |
| Max Reverse Current | 500nA |
| Mount | Chassis Mount, Screw |
| Number of Elements | 1 |
| Peak Non-Repetitive Surge Current | 750A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 42mm |
| RoHS | Compliant |
