The SKKT106/18E is a general purpose thyristor from Semikron with a maximum operating temperature of 130°C and a minimum operating temperature of -40°C. It has a hold current of 250mA and an RMS current of 180A. The device is mounted via screws and is available in a module package. It is compliant with RoHS regulations but does not meet SVHC requirements.
PackageModule
MountingScrew
Quick Jump:
Technical Specifications
Semikron SKKT106/18E technical specifications.
General
| Package/Case | Module |
| Height | 1.181inch |
| Hold Current | 250mA |
| Isolation Voltage | 1.2V |
| Length | 3.661inch |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Mount | Screw |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 180A |
| RoHS Compliant | Yes |
| Threshold Voltage | 1.65V |
| Width | 0.787inch |
Compliance
| RoHS | Compliant |
Datasheet
Semikron SKKT106/18E Datasheet
Download the complete datasheet for Semikron SKKT106/18E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

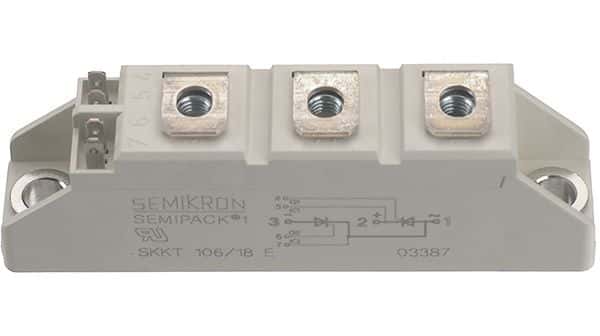

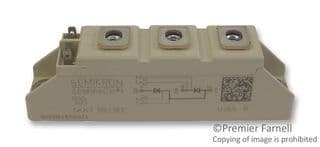

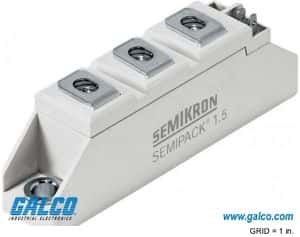

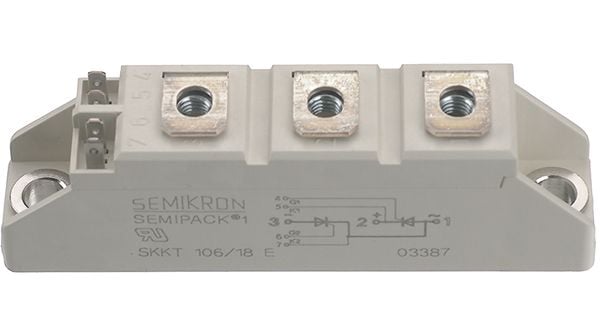

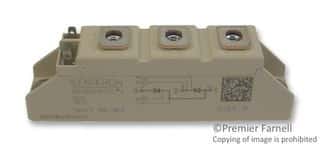

Product Images
