Technical Specifications

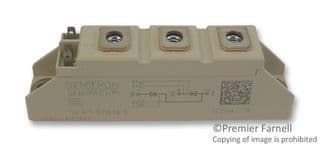

Semikron SKKT57B16E technical specifications.
General
Package/Case
Module
Height
30mm
Hold Current
250mA
Length
93mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.6kV
Mount
Panel
Reach SVHC Compliant
No
RMS Current (Irms)
95A
RoHS Compliant
Yes
Width
20mm
Compliance
RoHS
Compliant
Datasheet
Semikron SKKT57B16E Datasheet
Download the complete datasheet for Semikron SKKT57B16E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
