Voltage-mode switching regulator, 500mA output current, with adjustable output voltage from 800mV to 3.3V. Features include UVLO, OVP, OCP, OTP, and SCP protection. Operates with a maximum switching frequency of 3.5MHz and supports input voltages from 2.9V to 5.5V. This surface mount component is supplied in tape and reel packaging and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech SC202AMLTRT technical specifications.
General
| Features | UVLO, OVP, OCP, OTP, SCP |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 3.3V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SC202 |
| Switching Frequency-Max | 3.5MHz |
| Voltage - Output 1 | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Semtech SC202AMLTRT Datasheet
Download the complete datasheet for Semtech SC202AMLTRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

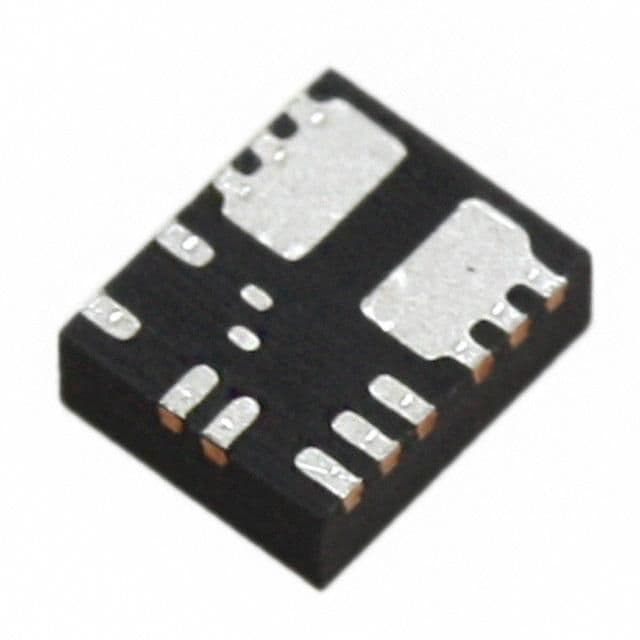

Product Images
