Dual switching controller, current-mode, featuring a maximum switching frequency of 2.5MHz and up to 93% efficiency. This integrated circuit supports a 2.9V to 5.5V input voltage range and delivers up to 1.8A per output with adjustable output voltages from 800mV to 3.3V. Designed for surface mount applications, it offers two positive outputs and includes synchronous rectification. Operating across a temperature range of -40°C to 85°C, this component is halogen-free and RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech SC283WLTRT technical specifications.
General
Efficiency
93%
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.8A
Max Output Voltage
3.3V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
2
Operating Supply Voltage
5.5V
Output Configuration
Positive
Output Current
1.8A
Output Voltage
3.3V
Packaging
Cut Tape
RoHS Compliant
Yes
Switching Frequency-Max
2.5MHz
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Semtech SC283WLTRT Datasheet
Download the complete datasheet for Semtech SC283WLTRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

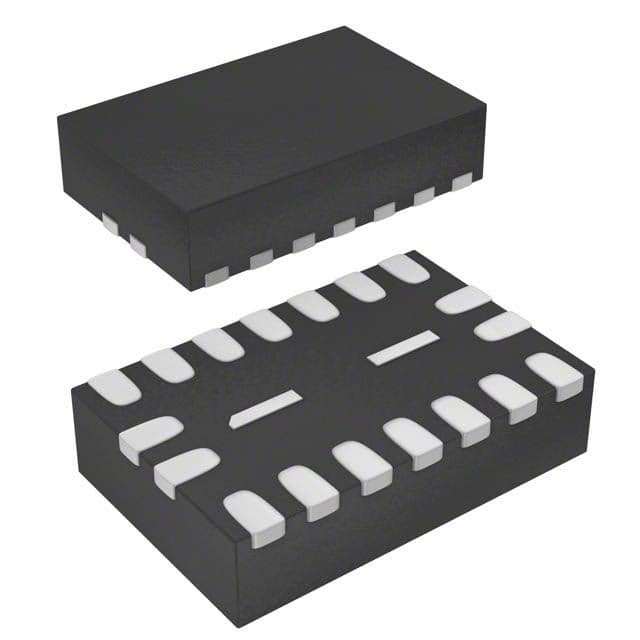

Product Images
