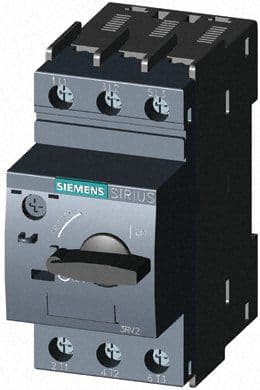

Motor protection circuit breaker, S00 size, with a current range of 2.2-3.2A. Features a 3-pole configuration and screw termination for secure connections. Rated for 690V and IP20 protection. Dimensions are 96mm depth, 97mm length, and 45mm width, designed for screw mounting.
Voltage Rating690V
MountingScrew
Quick Jump:
Technical Specifications
Siemens 3RV20111DA10 technical specifications.
General
| Depth | 96mm |
| Length | 97mm |
| Mount | Screw |
| Number of Poles | 3 |
| Ratings | IP20 |
| Series | 3RV2 |
| Termination | Screw |
| Voltage Rating | 690V |
| Width | 45mm |
Compliance
| RoHS | Compliant |
Datasheet
Siemens 3RV20111DA10 Datasheet
Download the complete datasheet for Siemens 3RV20111DA10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
