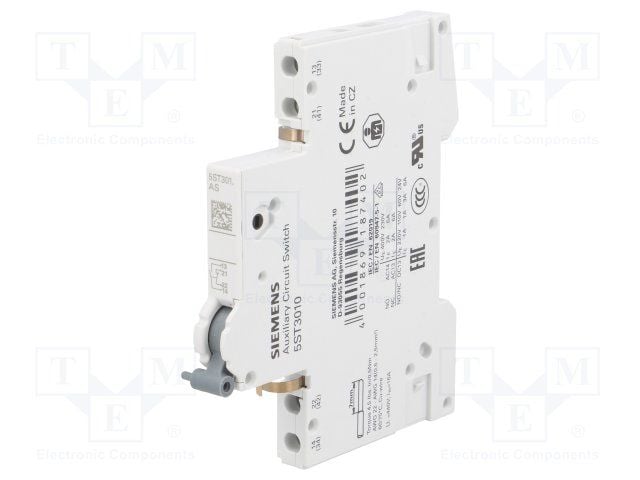

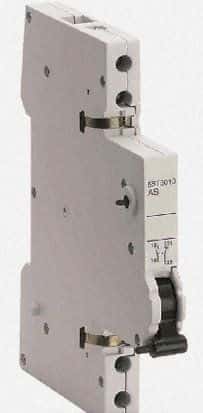

1 NO + 1 NC auxiliary switch, mountable, designed for use with miniature circuit breakers (5SL, 5SY, 5SP), incorporated switches (5TL1), RCBOs (5SU1, excluding 5SU1...FP/FR), and RCCBs (5SV, requiring handle coupler 5ST3805-1 for 5SU1).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 5ST3010 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Siemens 5ST3010 technical specifications.
| Contact Current Rating | 6A |
| Current Rating | 6A |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -5°C |
| Number of Contacts | 2 |
| Termination | Screw |
| Throw Configuration | DP |
| Product Designation | auxiliary switches |
| Design of the product | Mountable |
| Design of the product factory mounted | No |
| Electrical Endurance (Operating Cycles) Typical | 10000cycles |
| Insulation Voltage Rated Value | 440V |
| Surge Voltage Resistance Rated Value | 4kV |
| Supply Voltage at DC Rated Value - Minimum | 12V |
| Operating Voltage - Rated Value | 400V |
| Operating Voltage at AC Rated Value Minimum | 12V |
| Operating Voltage at DC Rated Value Minimum | 12V |
| Protection Class IP | IP20 |
| Type of Voltage of Control Voltage | AC/DC |
| Product Component - Auxiliary Switch | Yes |
| Number of Fault Signal Contacts | 0 |
| Product Extension Can be Mounted | Universal |
| Product Extension | auxiliary switch |
| Product Function Test Function for Fault Current Trip | No |
| Connectable Conductor Cross-Section - Minimum | 0.5mm² |
| Connectable Conductor Cross-Section - Maximum | 2.5mm² |
| AWG Number as Coded Connectable Conductor Cross Section - Minimum | 24AWG |
| AWG Number as Coded Connectable Conductor Cross Section - Maximum | 12AWG |
| Tightening Torque with Screw-Type Terminals - Maximum | 1N-m |
| Height | 90mm |
| Width | 9mm |
| Depth | 70mm |
| Number of Modular Width Units | 0.5units |
| Net Weight | 54.3g |
| Standard | IEC/EN60947-5-1; IEC/EN62019 |
| Environmental Product Declaration (EPD) | Yes |
| Global Warming Potential [CO2 eq] Total | 4.1kg |
| Global Warming Potential [CO2 eq] During Manufacturing | 0.527kg |
| Global Warming Potential [CO2 eq] During Operation | 3.52kg |
| Global Warming Potential [CO2 eq] After End of Life | 0.055kg |
| RoHS | Not Compliant |
| Approval | CCC |
| Approval | CE |
| Approval | UKCA |
| Approval | UR |
| Approval | VDE |
| Approval | EAC |
| Approval | Lloyd's Register |
| Approval | DNV |
| Approval | QC PASS |
