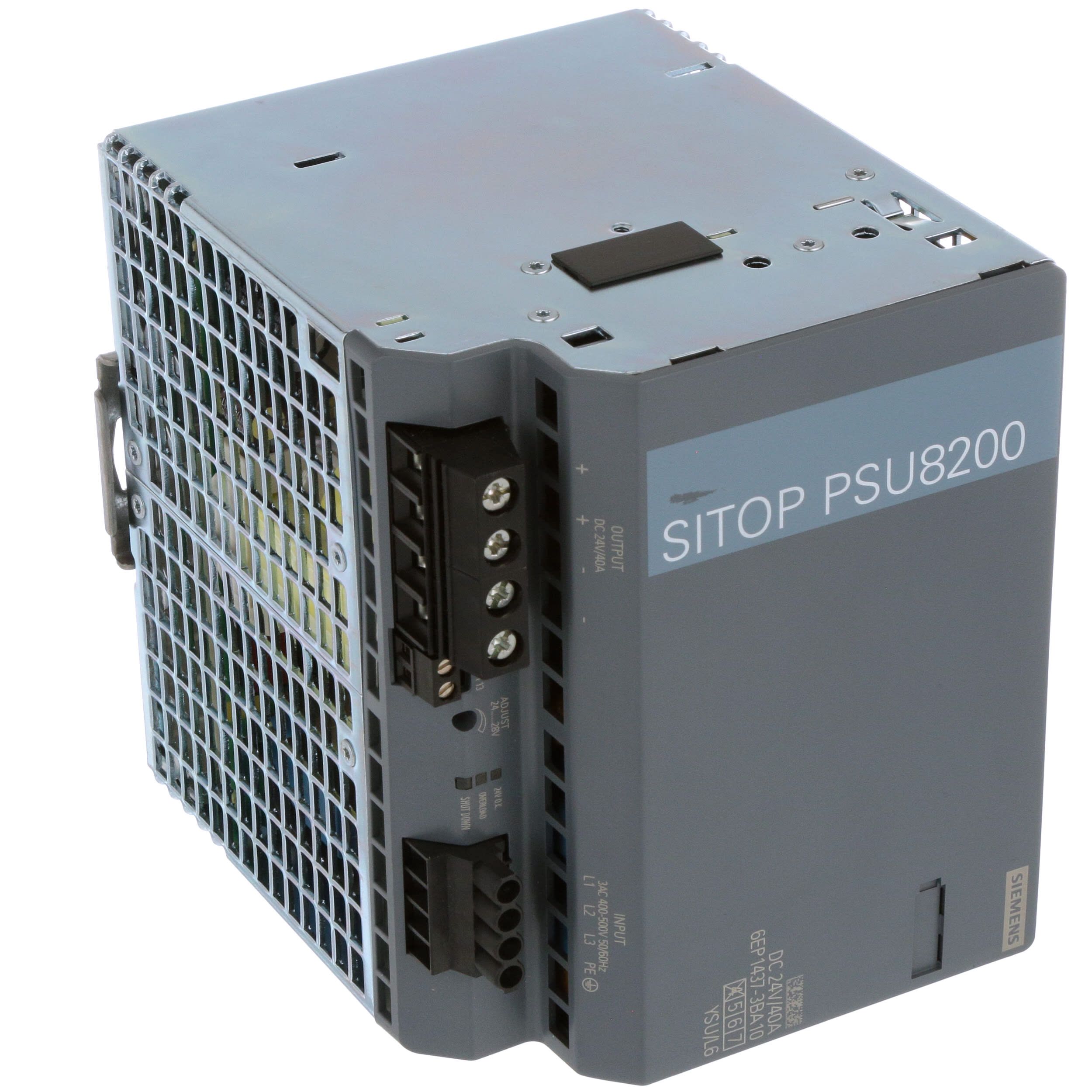

The 6EP1437-3BA10 is a DC/DC converter from Siemens with a nominal input voltage of 400V AC and a maximum output current of 40A. It operates within a temperature range of -25°C to 70°C and is compliant with RoHS regulations. The converter has a maximum output power of 960W and a nominal output voltage of 24V. It is designed for board mount applications and has a weight of 3.4kg.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 6EP1437-3BA10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current - Output 1 | 40A |
| Depth | 125mm |
| Efficiency | 92% |
| Height | 125mm |
| Length | 150mm |
| Max Input Voltage (AC) | 575V |
| Min Input Voltage (AC) | 320V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 40A |
| Max Output Power | 960W |
| Mount | DIN Rail |
| Nominal Input Voltage (AC) | 400V |
| Number of Outputs | 1 |
| Output Current | 40A |
| Output Power | 960W |
| Output Voltage | 24V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 24V |
| Weight | 3.4kg |
| Width | 150mm |
| RoHS | Compliant |
Download the complete datasheet for Siemens 6EP1437-3BA10 to view detailed technical specifications.
