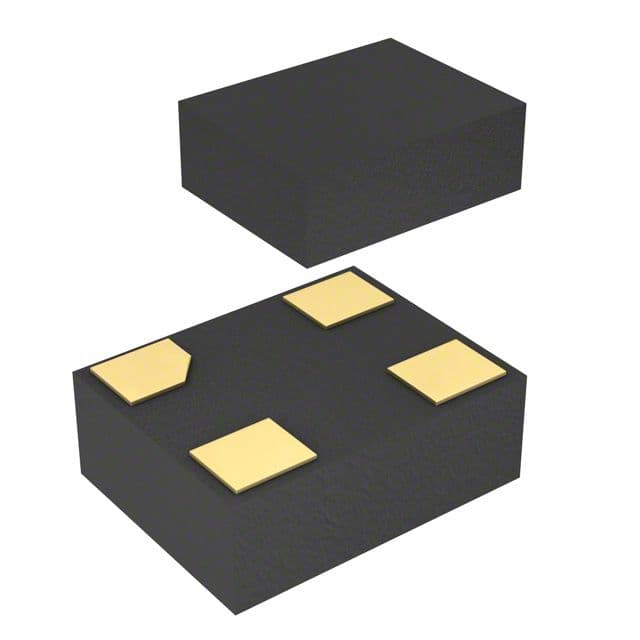

This 32.768kHz oscillator features a frequency stability of 20ppm and a frequency tolerance of 20ppm. It operates within a temperature range of -40°C to 85°C and has a maximum supply current of 2.5mA. The oscillator is designed for surface mount applications and is packaged in a cut strip format with 50 units per package. It is compliant with Reach SVHC regulations, although the level of compliance is unknown.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs 501BCAM032768DAG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Silicon Labs 501BCAM032768DAG technical specifications.
| Package/Case | SMD/SMT |
| Frequency | 32.768kHz |
| Frequency Stability | 20ppm |
| Frequency Tolerance | 20ppm |
| Height | 0.035inch |
| Length | 0.098inch |
| Load Capacitance | 15pF |
| Max Duty Cycle | 55% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 2.5mA |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 50 |
| Packaging | Cut Strip |
| Reach SVHC Compliant | Unknown |
| Series | SI501 |
| Termination | SMD/SMT |
| Width | 0.079inch |
| RoHS | Compliant |
