8-Bit Microcontroller (MCU) featuring an 8051 CPU core, operating at a maximum frequency of 25MHz. This CMOS device offers 64KB of FLASH memory and 4.25KB of RAM, with 32 programmable I/O pins. Integrated peripherals include multiple timers/counters, 6 PWM channels, 2 UART channels, I2C, SPI, CAN, and EBI/EMI interfaces. Packaged in a TQFP-64 surface-mount case, it operates from 2.7V to 3.6V and supports a wide temperature range of -40°C to 85°C.
Frequency25MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Silicon Labs C8051F045-GQ technical specifications.
General
Access Time
25us
Package/Case
TQFP
Core Architecture
8051
Data Bus Width
8b
Density
64KB
Frequency
25MHz
Height
1.05mm
Interface
I2C, SPI, CAN, UART, USART, EBI/EMI, SMBus, 2-Wire
Lead Free
Lead Free
Length
10mm
Max Frequency
25MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of ADC Channels
13
Number of Channels
6
Number of I/Os
32
Number of I2C Channels
1
Number of Programmable I/O
32
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor
Radiation Hardening
No
RAM Size
4.25KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C8051F04x
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F045-GQ Datasheet
Download the complete datasheet for Silicon Labs C8051F045-GQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

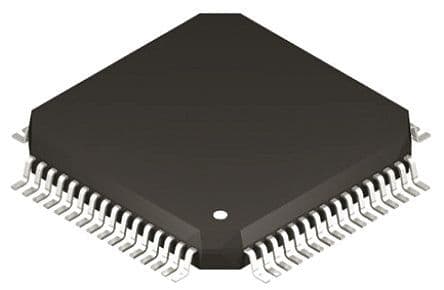

Product Images
