8-Bit Microcontroller featuring a 100MHz 8051 CPU core. This FLASH memory microcontroller offers 128KB of program memory and 8.25KB of RAM. Integrated peripherals include 6 PWM channels, 5 timers/counters, 8 ADC channels, and multiple communication interfaces such as I2C, SPI, and UART. The device operates from a 3V to 3.6V supply and is housed in a TQFP-100 surface-mount package.
Frequency100MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Silicon Labs C8051F122-GQ technical specifications.
General
Access Time
100us
Package/Case
TQFP
Contact Plating
Tin
Core Architecture
8051
Data Bus Width
8b
Frequency
100MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, EBI/EMI, SMBus, 2-Wire
Lead Free
Lead Free
Length
14mm
Max Frequency
100MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
8
Number of Channels
6
Number of I/Os
64
Number of I2C Channels
1
Number of Programmable I/O
64
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
2
Number of USB Channels
0
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor
Radiation Hardening
No
RAM Size
8.25KB
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
C8051F12x
Termination
SMD/SMT
Watchdog Timer
Yes
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F122-GQ Datasheet
Download the complete datasheet for Silicon Labs C8051F122-GQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

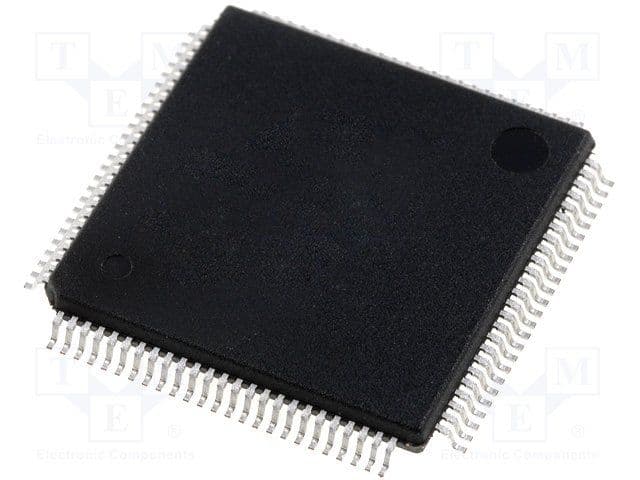

Product Images
