8-Bit Microcontroller, CMOS, FLASH memory, operating at up to 25MHz. Features 768B RAM, 8KB FLASH, and 17 programmable I/Os. Supports I2C, SPI, UART, USART, SMBus, and 2-Wire interfaces. Includes 4 timers/counters, POR, PWM, WDT, and a temperature sensor. Operates from 2.7V to 3.6V, with a temperature range of -40°C to 85°C. Packaged in a QFN, surface mountable, RoHS compliant.
Frequency25MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Silicon Labs C8051F330-GMR technical specifications.
General
Access Time
25us
Package/Case
QFN
Contact Plating
Tin
Core Architecture
8051
Data Bus Width
8b
Frequency
25MHz
Interface
I2C, SPI, UART, USART, SMBus, 2-Wire
Lead Free
Lead Free
Max Frequency
25MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
3
Number of I/Os
17
Number of Programmable I/O
17
Number of Timers/Counters
4
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1500
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT, Temp Sensor
Radiation Hardening
No
RAM Size
768B
RoHS Compliant
Yes
Series
C8051F33x
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F330-GMR Datasheet
Download the complete datasheet for Silicon Labs C8051F330-GMR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

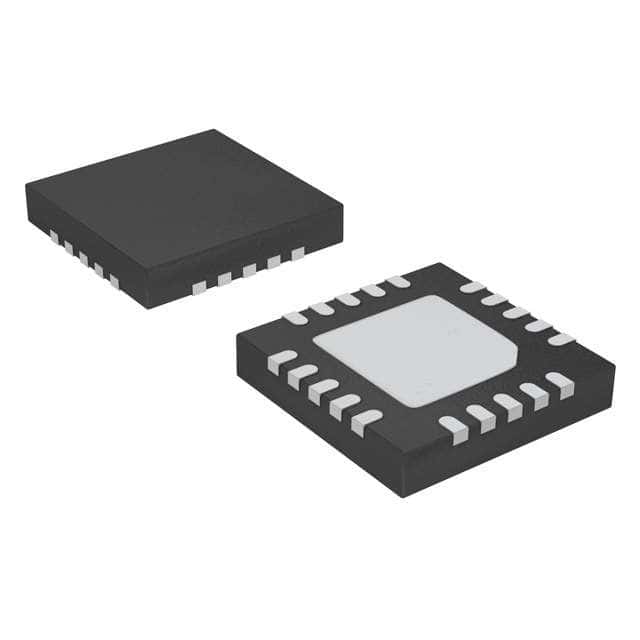

Product Images
