8-Bit Microcontroller, featuring an 8051 CPU core operating at 25MHz. This CMOS integrated circuit offers 2KB of FLASH memory and 0.75KB of RAM. Integrated peripherals include POR, PWM, and WDT, with 3 PWM channels and 4 timers/counters. Supports I2C, SPI, UART, USART, SMBus, and 2-Wire interfaces, providing 17 programmable I/O pins. Operates from a 2.7V to 3.6V supply, with an access time of 25µs. Packaged in a 4mm x 4mm QFN with tin, matte contact plating, this lead-free and RoHS compliant component operates between -40°C and 85°C.
Frequency25MHz
PackageQFN
Quick Jump:
Technical Specifications
Silicon Labs C8051F335-GM technical specifications.
General
| Access Time | 25us |
| Package/Case | QFN |
| Contact Plating | Tin, Matte |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 25MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, UART, USART, SMBus, 2-Wire |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Frequency | 25MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 2KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 3 |
| Number of I/Os | 17 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 17 |
| Number of PWM Channels | 3 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 91 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT |
| RAM Size | 0.75KB |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | C8051F33x |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Silicon Labs C8051F335-GM Datasheet
Download the complete datasheet for Silicon Labs C8051F335-GM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

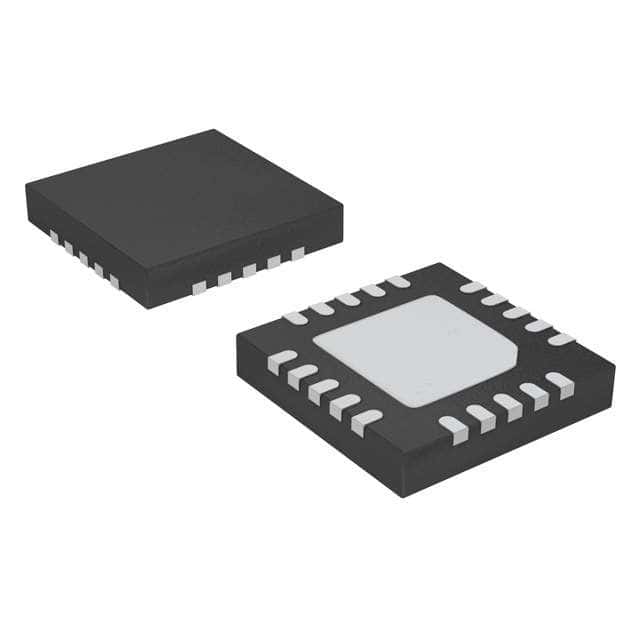

Product Images
