8-Bit Microcontroller (MCU) featuring an 8051 core architecture and 64KB FLASH memory. Operates at up to 48MHz with 4.25KB RAM. Includes 25 programmable I/Os, 5 PWM channels, 1 I2C, 1 SPI, and 1 UART interface, plus a USB channel. Packaged in an LQFP with Tin contact plating, this RoHS compliant component operates from 2.7V to 5.25V supply voltage and a temperature range of -40°C to 85°C.
Frequency48MHz
PackageLQFP
Quick Jump:
Technical Specifications
Silicon Labs C8051F34D-GQ technical specifications.
General
Package/Case
LQFP
Contact Plating
Tin
Core Architecture
8051
Data Bus Width
8b
Frequency
48MHz
Height
1.45mm
Length
7mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Number of Channels
5
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Number of USB Channels
1
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
4.25KB
RoHS Compliant
Yes
Series
C8051F34x
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F34D-GQ Datasheet
Download the complete datasheet for Silicon Labs C8051F34D-GQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

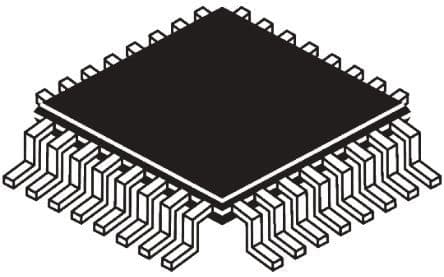

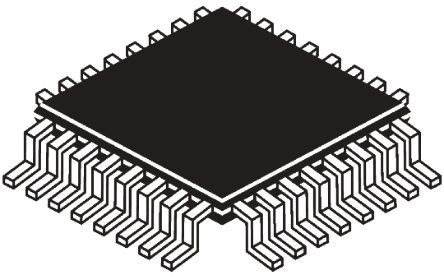

Product Images
