8-bit microcontroller featuring an 8051 core architecture, operating at up to 25MHz with 8KB of FLASH memory and 256 bytes of RAM. This surface mount device offers 6 programmable I/Os, 3 timers/counters, and supports SPI, UART, and USART interfaces. It includes peripherals such as Brown-out Detect/Reset, POR, PWM, WDT, and a temperature sensor, with an operating temperature range of -40°C to 125°C and a supply voltage from 2.7V to 5.25V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs C8051F520-IM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Silicon Labs C8051F520-IM technical specifications.
| Access Time | 25us |

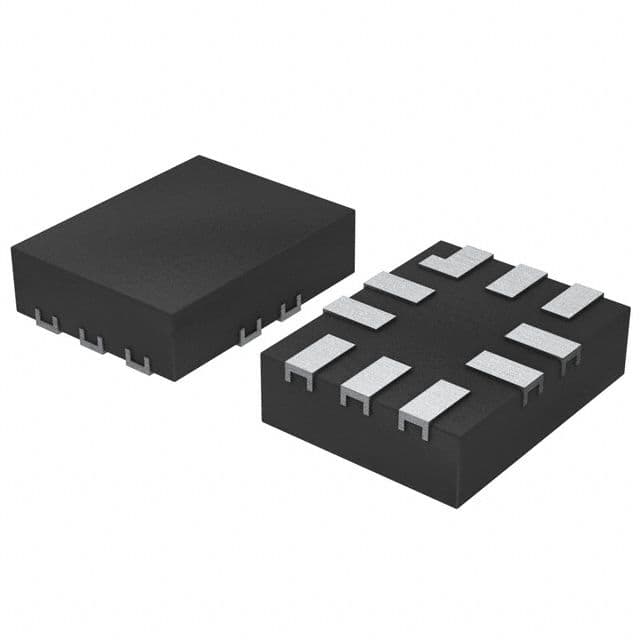

| Package/Case | DFN |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Interface | SPI, UART, USART |
| Lead Free | Contains Lead |
| Max Frequency | 25MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of I/Os | 6 |
| Number of Programmable I/O | 6 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 122 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Series | C8051F52x |
| RoHS | Compliant |
