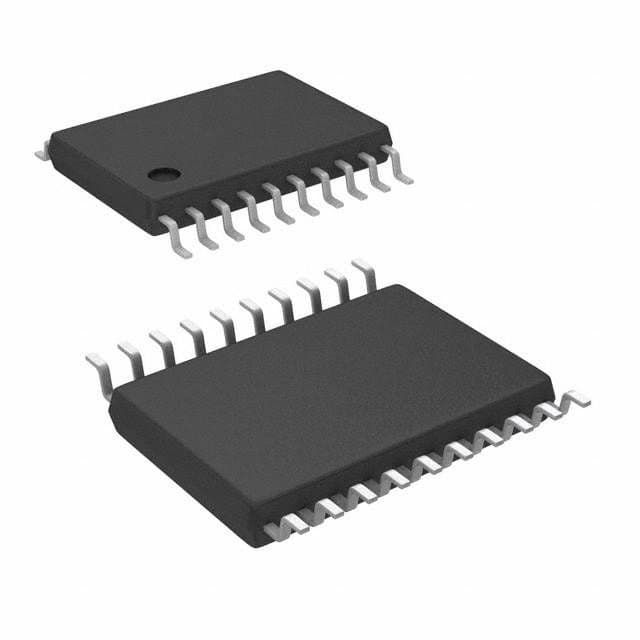

8-bit microcontroller featuring an 8051 core architecture, operating at up to 25MHz. This FLASH memory microcontroller offers 4KB of program memory and 256B of RAM, with 16 programmable I/O pins. Integrated peripherals include SPI, UART, USART interfaces, 3 timers/counters, and PWM capabilities. Designed for surface mounting in a TSSOP-20 package, it operates across a wide temperature range of -40°C to 125°C with supply voltages from 1.8V to 5.25V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs C8051F533A-IT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Silicon Labs C8051F533A-IT technical specifications.
| Package/Case | TSSOP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 25MHz |
| Interface | SPI, UART, USART |
| Max Frequency | 25MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 4KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Channels | 3 |
| Number of I/Os | 16 |
| Number of Programmable I/O | 16 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 74 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor |
| Radiation Hardening | No |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Series | C8051F53x |
| RoHS | Compliant |
Download the complete datasheet for Silicon Labs C8051F533A-IT to view detailed technical specifications.
