8-Bit Microcontroller (MCU) featuring an 8051 core architecture and a maximum operating frequency of 50MHz. This CMOS device offers 96KB of FLASH memory and 8.25KB of RAM, with 40 programmable I/O pins. Integrated peripherals include 32 ADC channels, 12 PWM channels, 6 timers/counters, and multiple communication interfaces such as I2C, SPI, and UART. Designed for surface mounting in a QFN package, it operates across a wide temperature range of -40°C to 125°C and supports supply voltages from 1.8V to 5.25V.
Frequency24MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Silicon Labs C8051F585-IM technical specifications.
General
Package/Case
QFN
Contact Plating
Tin
Core Architecture
8051
Data Bus Width
8b
Frequency
24MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART, EBI/EMI, SMBus, 2-Wire
Length
7mm
Max Frequency
50MHz
Max Operating Temperature
125°C
Max Supply Voltage
5.25V
Memory Size
96KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
32
Number of Channels
12
Number of I/Os
40
Number of I2C Channels
1
Number of Programmable I/O
40
Number of PWM Channels
12
Number of SPI Channels
1
Number of Timers/Counters
6
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
43
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT, Temp Sensor
RAM Size
8.25KB
RoHS Compliant
Yes
Series
C8051F58x
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F585-IM Datasheet
Download the complete datasheet for Silicon Labs C8051F585-IM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

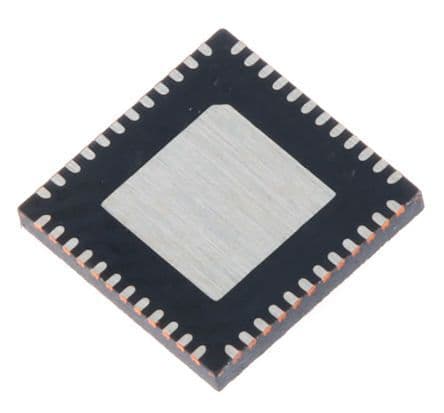

Product Images
