8-Bit Microcontroller featuring an 8051 CPU core operating at up to 25MHz. This CMOS device offers 8KB of FLASH memory and 0.5KB of RAM, with 39 programmable I/O pins. Includes 4 timers/counters, an internal oscillator, and peripherals such as POR, PWM, and a watchdog timer. Packaged in a TQFP-48 with tin contact plating, it operates from 1.8V to 3.6V and is RoHS compliant.
Frequency25MHz
PackageTQFP
Quick Jump:
Technical Specifications
Silicon Labs C8051F715-GQ technical specifications.
General
Package/Case
TQFP
Contact Plating
Tin
Core Architecture
8051
Data Bus Width
8b
Frequency
25MHz
Max Frequency
25MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of Channels
3
Number of I/Os
39
Number of Programmable I/O
39
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT
RAM Size
0.5KB
RoHS Compliant
Yes
Series
C8051F71x
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F715-GQ Datasheet
Download the complete datasheet for Silicon Labs C8051F715-GQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

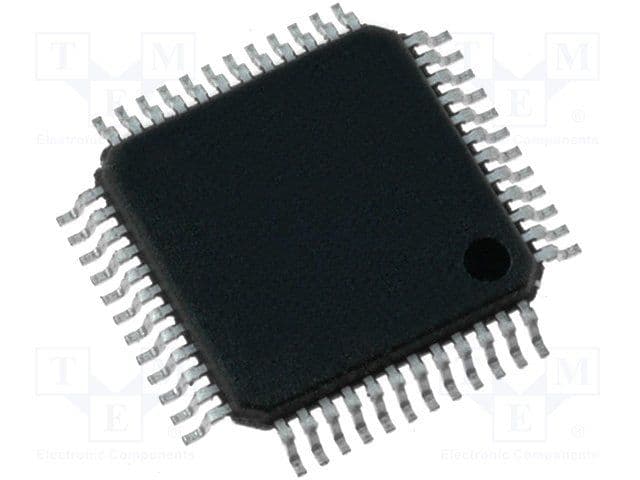

Product Images
