8-bit microcontroller featuring an 8051 core architecture and 16KB of FLASH memory, operating at up to 25MHz. This CMOS device offers 16 programmable I/Os, 15 ADC channels, and multiple communication interfaces including I2C, SPI, UART, USART, and SMBus. Integrated peripherals include a watchdog timer, brown-out detect/reset, POR, PWM, and a temperature sensor. Packaged in a QSOP-24 with Tin contact plating, it operates from -40°C to 85°C with a maximum supply voltage of 3.6V.
Frequency25MHz
PackageQSOP
Quick Jump:
Technical Specifications
Silicon Labs C8051F911-GU technical specifications.
General
Package/Case
QSOP
Contact Plating
Tin
Core Architecture
8051
Data Bus Width
8b
Frequency
25MHz
Height
1.75mm
Interface
I2C, SPI, UART, USART, SMBus, 2-Wire
Length
8.65mm
Max Frequency
25MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Number of ADC Channels
15
Number of I/Os
16
Number of Programmable I/O
16
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor
RAM Size
0.75KB
RoHS Compliant
Yes
Series
C8051F9xx
Watchdog Timer
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F911-GU Datasheet
Download the complete datasheet for Silicon Labs C8051F911-GU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

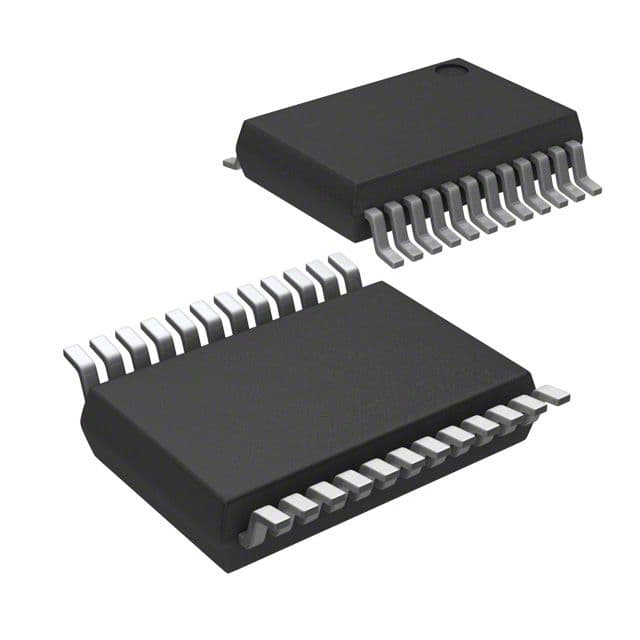

Product Images
