Frequency25MHz
PackageQFN
Quick Jump:
Technical Specifications
Silicon Labs C8051F969-A-GM technical specifications.
General
Package/Case
QFN
Core Architecture
8051
Data Bus Width
8b
Interface
I2C, SPI, UART, USART, SMBus
Max Frequency
25MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of I/Os
34
Number of Programmable I/O
34
Number of Timers/Counters
4
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
4.25KB
RoHS Compliant
Yes
Series
C8051F9xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F969-A-GM Datasheet
Download the complete datasheet for Silicon Labs C8051F969-A-GM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

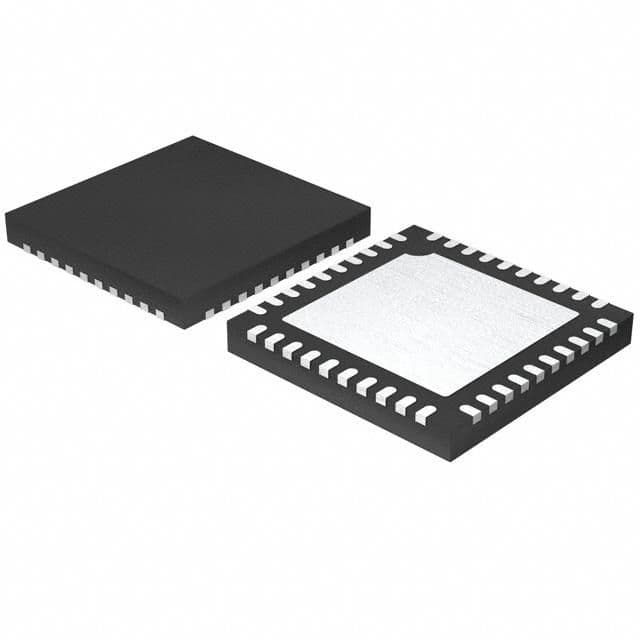

Product Images
